| উৎপত্তি স্থল: | চীন |
| পরিচিতিমুলক নাম: | WESPC |
| সাক্ষ্যদান: | ISO9001 |
| মডেল নম্বার: | T400745 |

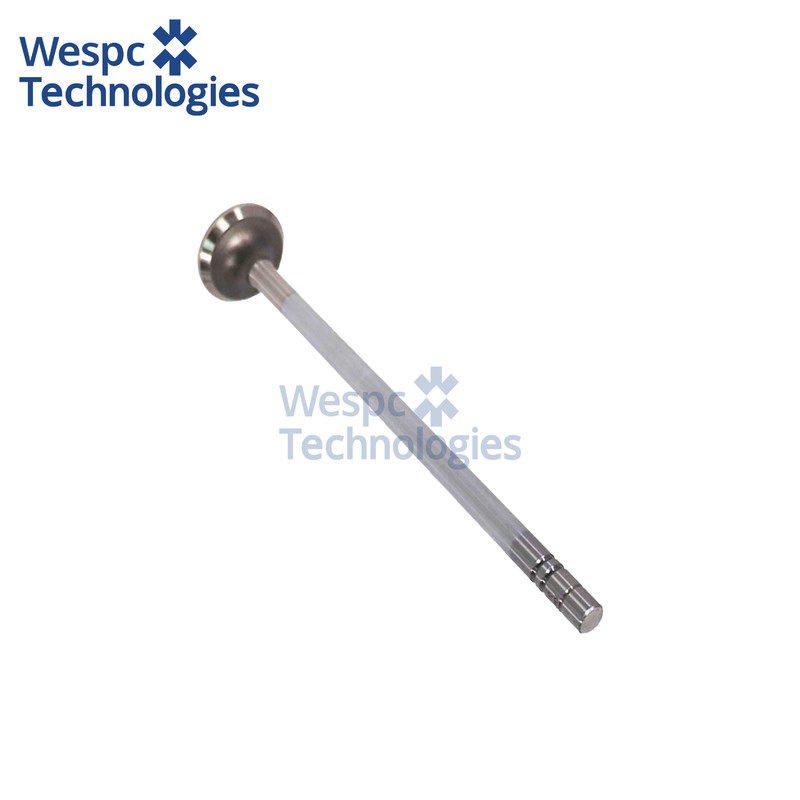

WESPC Exhaust Valve T400745 For Perkins 1506A-E87TAG 1506D-E87TA 1506D-E88TA Engines
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
T400745 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
This exhaust valve is factory-fitted to the latest 6-cylinder Perkins 1506A-E87TAG, 1506D-E87TA and 1506D-E88TA engines, which power FG-Wilson P165-5, P200-5 and P220-5 generator sets, JCB 457 ZX and 467 ZX wheeled loaders, Dressta TD-15R and TD-20R crawler dozers, Bomag BW226D-5 single-drum rollers, Atlas-Copco XAS 375 and XATS 400 portable compressors plus a wide range of 200-300 kW construction, material-handling and standby-power equipment that must meet EU Stage IV / EPA Tier 4-F emission limits worldwide.
Technical specifications:
Valve-head Ø 42 mm, stem Ø 9 mm, overall length 158 mm, seat angle 30°; stem tip is induction-hardened to 52-58 HRC while the lower stem carries a 0.03-0.05 mm gas-nitrided layer giving > 850 HV surface hardness to resist scuffing during prolonged high-temperature exhaust pulses typical of the 1506D engine.
Material & performance features:
Hot-forged from 21-4N (5Cr21Mn9Ni4N) austenitic steel that retains 900 MPa tensile strength at 700 °C, the head is flash-chrome plated (≈3 µm) to cut friction and valve-guide wear while the nitride layer on the stem prevents micro-welding and maintains stable lash over thousands of hours in stop-start industrial service.
Interchange part numbers:
Perkins T400745, U20176391; KMP T400745; AE 20953; Mahle 043VET400745; Bepco BVT400745; Maxiforce MV-T400745; SBI 01822.
