| Place of Origin: | United Kingdom |
| Brand Name: | DSE |
| Certification: | CE,RoHS,ISO9001 |
| Model Number: | DSE7410 MKII |
| Attribute | Value |
|---|---|
| Warranty | 1 Year |
| Size | 250.0 mm x 189.0 mm x 50.5 mm / 9.85" x 7.43" x 1.99" |
| Quality | 100% Original |
| Stock | In Stock |
| Color | Black |
| MOQ | 1pcs |
| Application | Diesel Generator |
| Selling Units | Single Item |

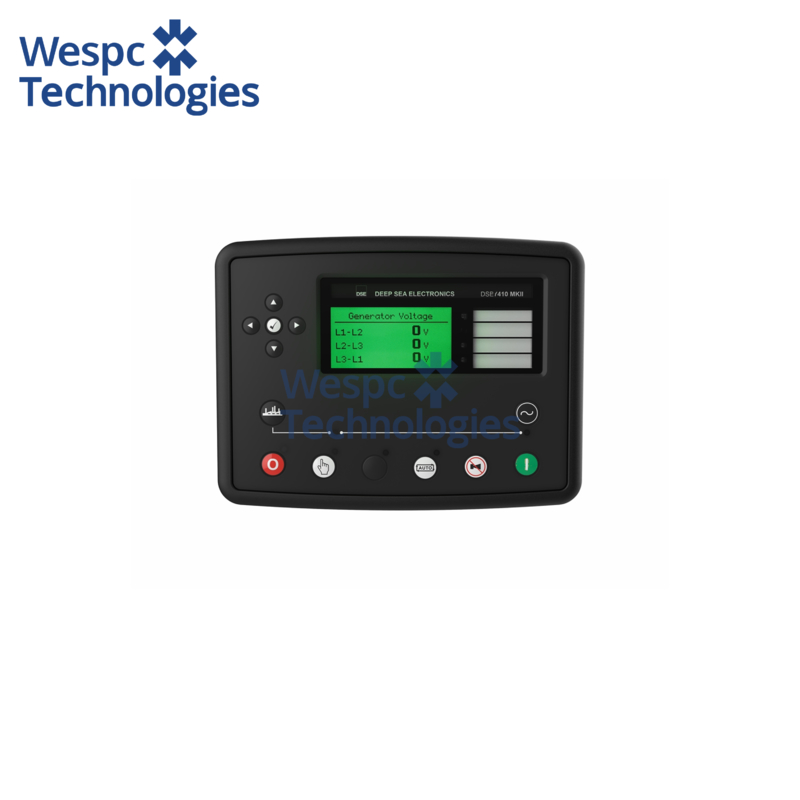

The DSE7410 MKII is an advanced Auto Start Control Module designed for single diesel or gas generator applications. This intelligent module monitors multiple engine parameters and displays warnings, shutdowns, and engine status information via:
The module features comprehensive connectivity options including USB, RS232, RS485, Ethernet ports, and dedicated DSENet® terminals for system expansion.
Compatible with both electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines, the DSE7410 MKII offers:
Configuration is simplified with DSE Configuration Suite PC software, with selected front panel editing also available.
Overall Size: 250.0 mm x 189.0 mm x 50.5 mm / 9.85" x 7.43" x 1.99"
Panel Cutout Size: 220.0 mm x 160.0 mm / 8.66" x 6.30"
Maximum Panel Thickness: 8.0 mm / 0.3"
Product Variants: 7410-03
