| Place of Origin: | China |
| Brand Name: | Fortrust |
| Certification: | CE,RoHS,ISO9001 |
| Model Number: | C2002 |
| Material | Plastic |
| Type | Diesel engine part |
| Generator Type | Diesel generator, Gasoline generator |
| Usage | Genset |
| Delivery Time | Depends on Quality |
| Payment Terms | 100% Paid in Advance |

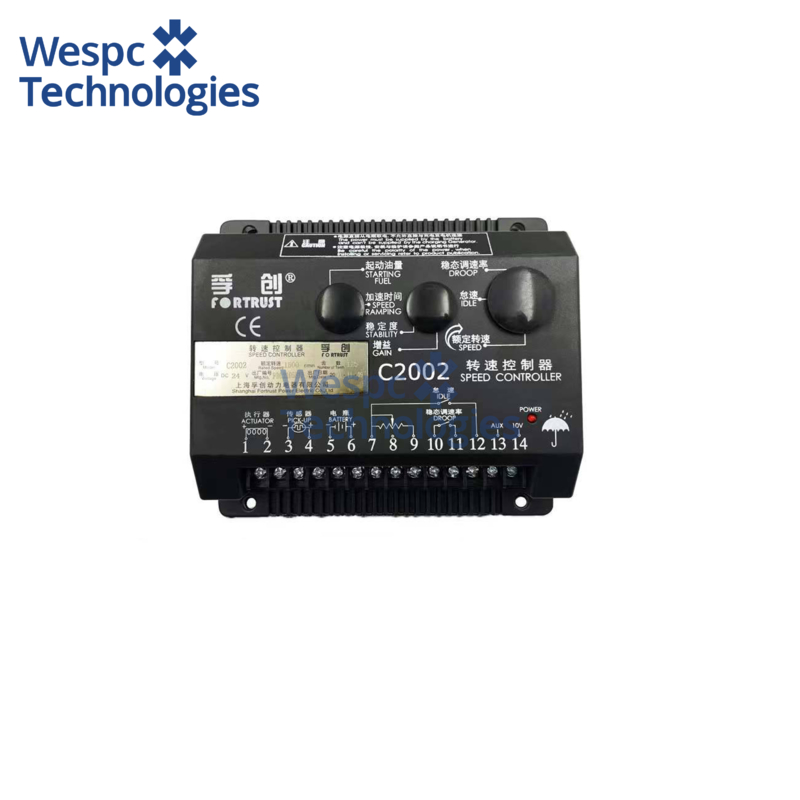

The C002 speed controller is the best selling product of Fortrust with the cumulative market volume of more than 2 million pcs. The electronic speed controller is equipped with mechanisms or components such as speed setting, speed measurement, comparison, computation, drive output, actuating elements, adjustment coefficient setting, protection, or limitation. These mechanisms or components are effectively combined to form a closed-loop control system.
The closed-loop control method of the electronic speed controller can produce rapid and precise responses to instantaneous load changes of the engine, aiming to control the engine's speed. By manually adjusting the controller's gain, stability, and the potentiometer for steady-state speed regulation rate, transient speed regulation rate, and stability time, it can meet the requirements of different engines for steady-state speed regulation, transient speed regulation, and stability time.
Basic Characteristics:
ØR Battery Voltage: DC24V(Range 18V～32V)或 DC12V(Range 9V～16V)
Ø Power Consumption < 0.1A(Not including the Actuator)
Ø Speed Fluctuation Rate ≤ ±0.25%
Ø The Stable Speed Regulating 0～5 % (Adjustable)
ØR Ambient Temperature: -40℃～ +70℃
ØR Ambient Humidity :< 95%
The dimension of installation:
The Speed Controller is installed in the control box or fixed on the other peripheral equipment
of the engine, the ambient with dry air and appropriate temperature will be better. If it be used
under the warter or any humid place,please install the speed controller vertically.
