| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 185246190 |

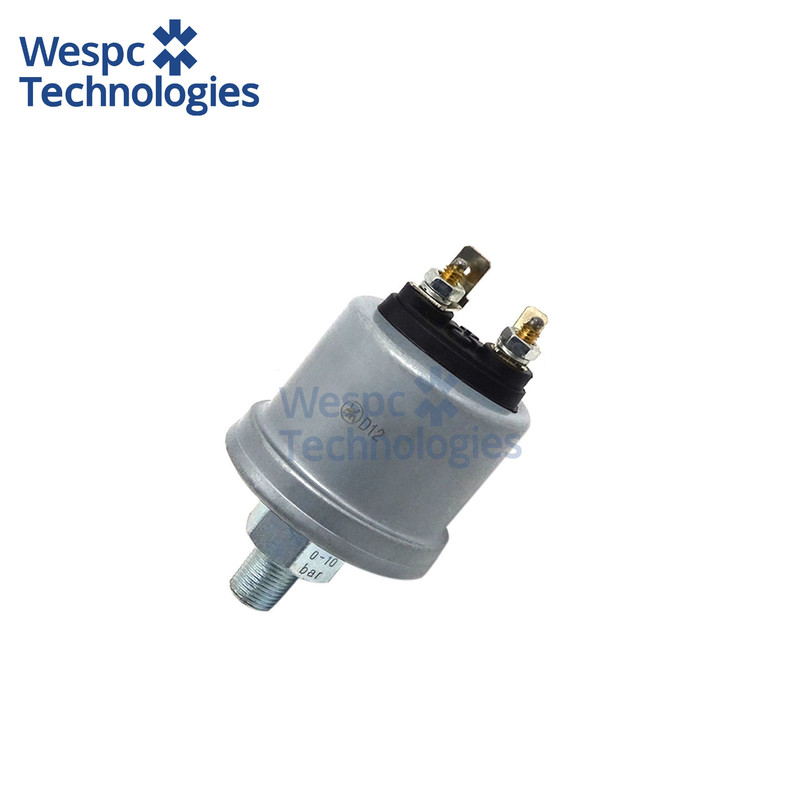

WESPC Oil Pressure Sensor 185246190 For Perkins Engine 400 403 404 Series
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
185246190 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Perkins 1004.4T, 1004.4TA, 1006.6, 1104C-44, 1106D, and 1206E naturally aspirated and turbocharged diesel engines (2.5 to 7.0 L), widely employed in skid steer loaders, compact excavators, agricultural tractors, generator sets, and industrial machinery. Agricultural tractors include Massey Ferguson 2405, 2410, 2605, 3610; Landini Rex 90 and Rex 100; and New Holland Workmaster series. Combine harvesters include Massey Ferguson 565, 760, and 8600 Series, as well as New Holland CX and CR Series. Generator sets include Perkins 1004.4TA and 1106D gen-sets by FG Wilson, KOHLER, and Fairbanks Morse. Industrial machinery covers stationary pumps, air compressors, hydraulic power units, and pressure washers powered by Perkins 1000 and 1100 Series engines.
Technical specifications:
The sensor features a 1/8″ NPT pressure port (also offered in G1/4″ BSP) and an integrated two-pin sealed Deutsch connector. It delivers a linear analog output of 0.5–4.5 V over a pressure span of 0–100 psi (0–7 bar). Operating temperature ranges from –40 °C to 125 °C, with accuracy of ±1.5 % full-scale output, response time under 5 ms, and overpressure tolerance up to two times the rated pressure.
Material & performance features:
The sensing element is a stainless-steel piezoresistive die with internal temperature compensation, enclosed in a brass housing plated for corrosion resistance. Fully potted electronics in epoxy compound ensure moisture and vibration immunity, while the high-temperature polymer connector housing resists mechanical shock. Dual O-ring seals provide leak-proof performance, and the assembly withstands harsh environments typical of construction, agricultural, and industrial applications.
Interchange part numbers:
185246190; Massey Ferguson 1872190M91; Landini 3801683M91; Case 185-246190; John Deere RE56322; CNH 82005526; Volvo Penta 21960117; Komatsu 600-411-8980.
