| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | GM50C |

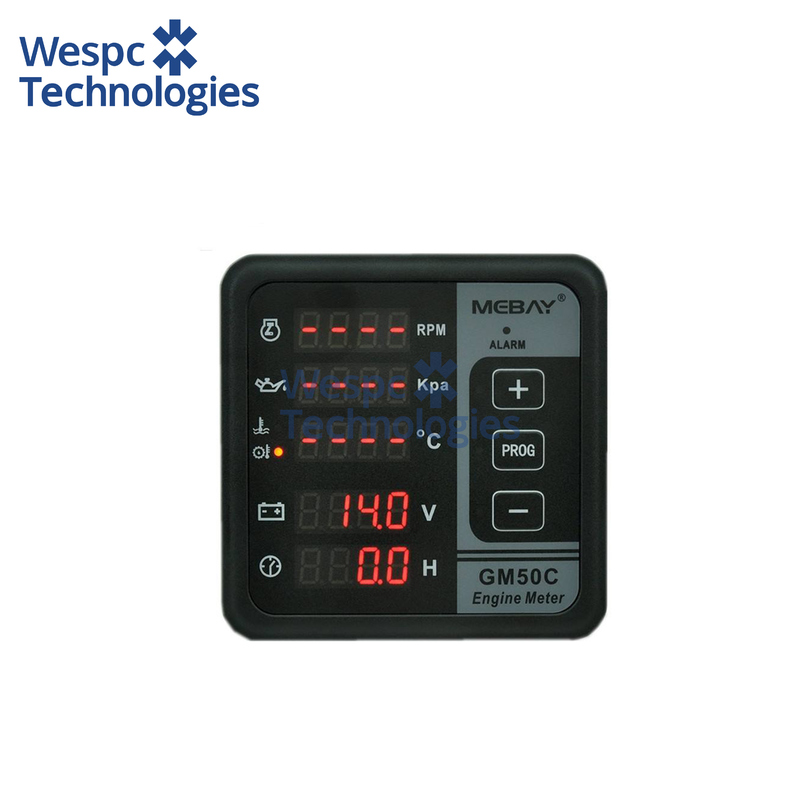

WESPC Original Mebay GM50C Digital Tachometer for Generator Set RPM Monitoring
| Brand Name | Mebay |
| Place of Origin | China |
| Part Number | GM50C |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Summary
GM50C is one light and low price-orientated module used for demonstrating engine RPM,water/oil temperature, oil pressure, battery voltage and Hours. With CAN communication port, built-in J1939 protocol, compatible with most EFI Engines.The users can adjust and set the parameters by the button on the front face in order to meet the different requests. Besides, it uses the European-style terminals for connection which is more convenient for installation and detachment.
There are 2 Models under GM50C series:
GM50C:Engine parameters gathered through Can Port and inside J1939 protocol, Protection Alarm, value set
by front face buttons.
GM50CR:Based on GM50C functions, RS485 port is added, parameters can be monitored and set directly
through PC, besides, the remote vice meter can monitor the main meters.
Features
Various kinds of protections
Input frequency is available to check RPM
Variety of sensor curves' parameters is set inside
Sensor curve can be self-defined by buttons
High-light digital tube can demonstrate the parameters
ECU fault code can be displayed
The parameters can be set and adjusted by the button on the front face
The engine speed can be controlled through the buttons on the panel.
Parameters Display
Engine RPM
Engine Oil Pressure
Engine Oil Temperature
Engine Cooling Water Temperature
Battery Voltage
Accumulation Time.
parameter values
