| Place of Origin: | United Kingdom |
| Brand Name: | DSE |
| Certification: | ISO9001 |
| Model Number: | DSE160 12V |
|
MOQ |
1pcs |
|
Product Name |
Self-Seeking Power Supply |
|
Packing |
Neutral Packing |
|
Operation Temp |
-30°C to +70°C |
|
Brand Name |
Deep Sea Controller |
|
Material |
Plastic |

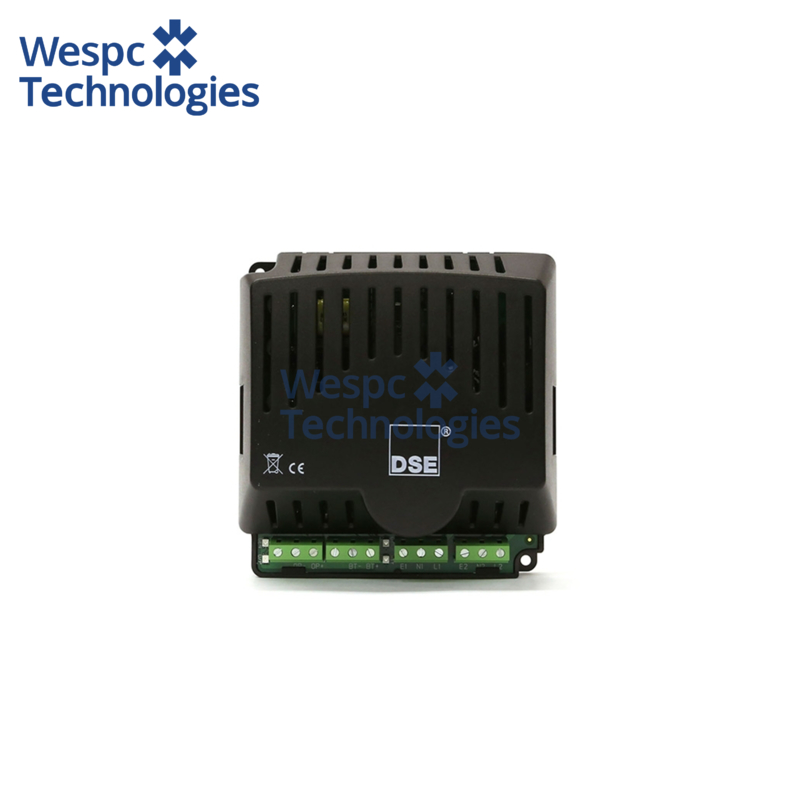

The DSE160 Self-Seeking Power Supply has been designed for use with DSE3xx control modules. The DSE160 can be supplied from a mains (utility), generator or battery and provides a power supply output that gives DC power to the ATS controller. When the mains (utility) supply fails the DSE160 automatically switches to providing generator or battery power. Three red LEDs on the front of the unit show the operating status at all times. The DSE160 is available in 12 and 24 volt versions and provides comprehensive short circuit protection.
OVERALL
136 mm x 140 mm x 63 mm (5.4” x 5.5” x 2.5”)
WEIGHT
0.4kg
PRODUCT VARIANTS
0160-00 - 12 Volt Self Seeking Power Supply (110v-277v 50.60Hz)
0160-01 - 24 Volt Self Seeking Power Supply (110v-277v 50/60Hz)
