| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | GV23AT MKII |
WESPC Original Mebay GV23AT MKII Digital Meter for Diesel Genset Monitoring
| Brand Name | Mebay |
| Place of Origin | China |
| Part Number | GV23AT MKII |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Summary

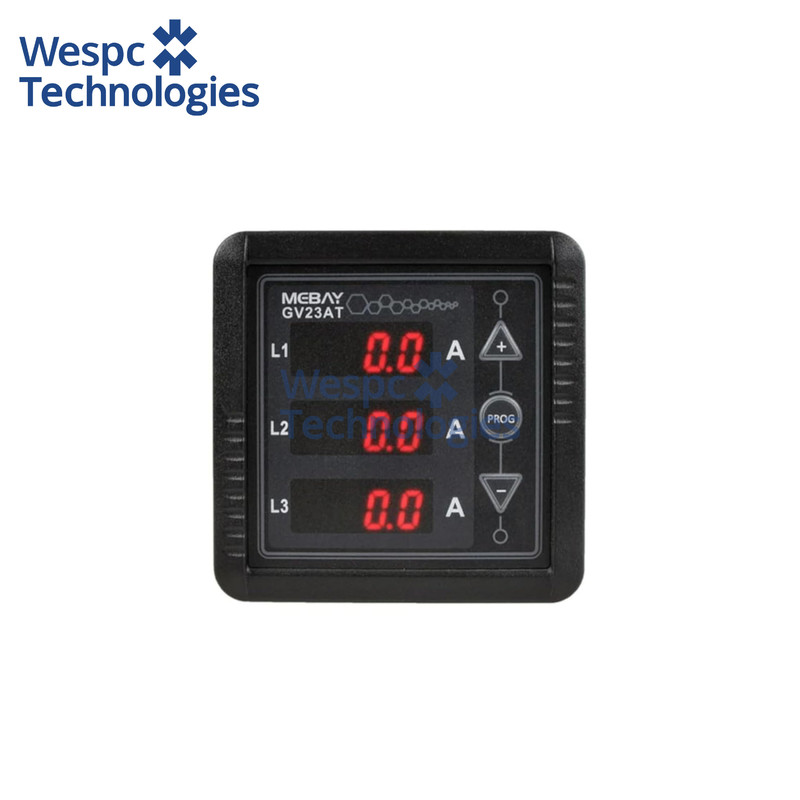

GV23AT MK2 is one meter for checking and displaying 3-phase AC current with light weight and low cost.It can replace traditional mechnical meter by digital display, besides, it can apply for different kinds of CT.
Features
4-positions LED tube display.
Independent display for each 3 Phases.
AC power input
CT ratio can be set
Wide working voltage range.
Parameters display
L1 AC current
L2 AC current
L3 AC current
Range and accuracy
Current: 0-9999A,Class 2.5
Specification
Working power: AC 165～275 V,40-70HZ
Consumption Power: MAX:1 W
Operation Temperature Range: -30℃ ～ 65℃
Protection Level IP54:when waterproof rubber gasket is added between controller and its panel
Size: 78mm * 75mm * 76mm
Installation size: 68mm * 68mm
Weight:110G
