| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 25061578 |

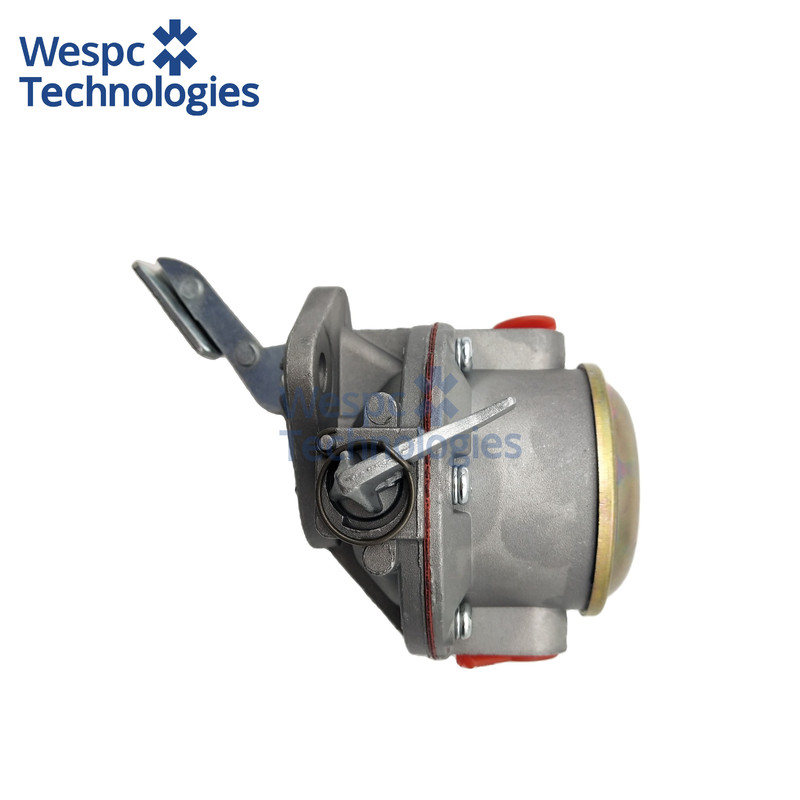

WESPC Diesel Engine 25061578 Fuel Lift Pump For Perkins Engine Parts
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
25061578 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
The 25061578 electric gear-type lift pump is specified for Perkins 1104D-44T and 1104D-E44TA turbo-diesel engines (4.4 L, 4-cylinder) that power Massey Ferguson 7724 S and 7726 S Dyna-VT tractors, Landini Rex 5-120/130/145 T-V ROW-CROP machines, JCB 437S AGRI wheeled loaders and 540-180 Hi-Viz telescopic handlers, plus FG Wilson P55-6 and Pramac GSW180P enclosed generator sets. It mounts on the left-rear face of the cylinder block and supplies filtered fuel to the high-pressure injection pump across engine speeds from 650 r/min idle to rated 2 200 r/min.
Technical specifications:
This 12 V DC positive-displacement gear pump delivers a calibrated 240 L/h at 400 kPa and 13 V, drawing only 6 A at 2 000 r/min. The die-cast aluminium body carries SAE J744 size 2 mounting flange with two M8 threaded holes on 50 mm centres; 8 mm quick-connect inlet and outlet ports accept standard push-fit fuel lines. An integral stainless-steel mesh strainer rated at 60 µm protects the gears, while an internal relief valve opens at 450 kPa to prevent over-pressure. All elastomers are FKM (Viton) for compatibility with biodiesel blends up to B20 and ultra-low-sulphur winter diesel down to −45 °C.
Material & performance features:
The powder-coated aluminium housing resists salt-spray and stone-chip damage; precision-hardened steel gears run within a bronze bearing sleeve, ensuring quiet operation and wear resistance over 4 000-hour service intervals. A neodymium magnetic ring in the inlet port captures ferrous particles down to 40 µm, extending downstream component life. The encapsulated DC motor is IP67-sealed against dust and moisture, and a self-resetting thermal cut-off at 115 °C guards against overload. Lightweight, maintenance-free sealed bearings and vibration-damped mountings make the unit ideal for continuous-duty agricultural, construction and standby-power applications.
Interchange part numbers:
PERKINS 25061578, 25061579; MASSEY FERGUSON 3638727M91, 3638728M91; LANDINI 747608M91, 747609M91; JCB 331/20321, 331/20322; FG WILSON 10000-45235; PRAMAC 6000-45235; reference equivalent to 1-12320-810-0 and 04279-0L125 assemblies.
