| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 3860189 |

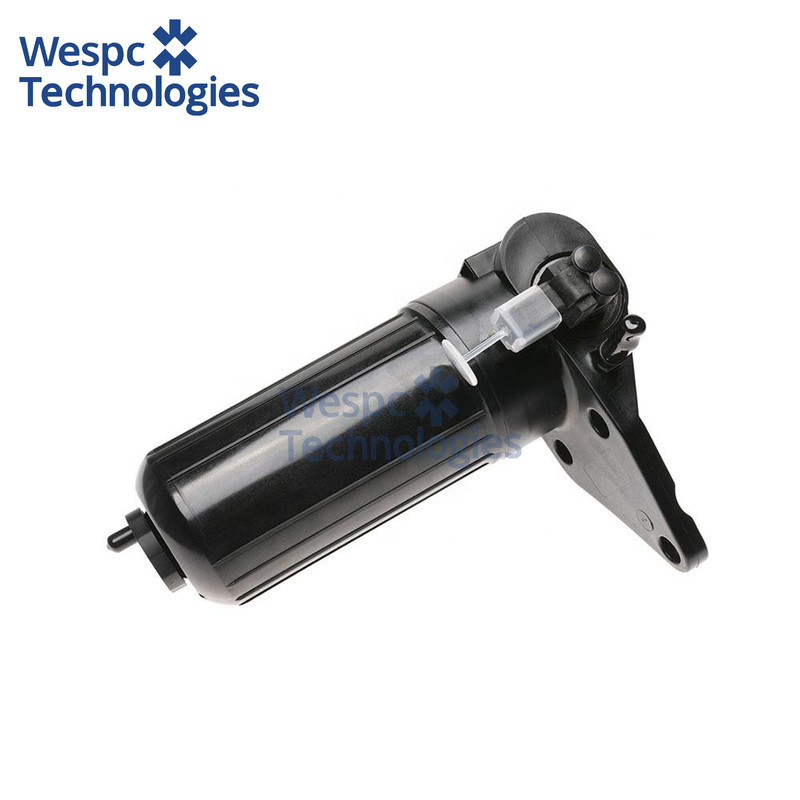

WESPC Diesel Engine 3860189 Fuel Lift Pump For Perkins T4.236 Engine Parts
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
3860189 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
The 3860189 gear-type electric lift pump is engineered for Perkins T4.236 and AT4.236 turbocharged diesel engines (4.0 L, 4-cylinder) that power Massey Ferguson 2400- and 3400-series tractors, MF 7200 combine harvesters, FG Wilson P22-6 and Pramac GSW85P generator sets, plus JCB 3CX backhoe loaders and Manitou MLT telehandlers. It bolts to the rear left face of the timing cover and supplies filtered fuel to the high-pressure injection pump across engine speeds from 650 r/min idle to 2 400 r/min rated.
Technical specifications:
Positive-displacement gear pump delivers 130 L/h at 350 kPa and 12 V, drawing only 3.5 A at 2 000 r/min. Die-cast aluminium body carries SAE J744 size 2 flange with two M8 threaded holes on 50 mm centres; 8 mm quick-connect inlet and outlet ports accept standard push-fit fuel lines. Internal relief valve opens at 400 kPa to protect downstream components; Viton seals and gaskets ensure compatibility with biodiesel blends up to B20 and arctic-grade diesel down to −45 °C.
Material & performance features:
Powder-coated aluminium housing resists salt-spray corrosion; precision-hardened steel gears run in a bronze bearing sleeve for quiet, long-life operation. Stainless-steel magnetic strainer cap captures ferrous debris down to 40 µm, while spring-loaded Viton check valves prevent back-flow and vapour lock. The encapsulated 12 V DC motor is IP67-sealed against dust and moisture, and a self-resetting thermal cut-off at 110 °C guards against overload. Lightweight, vibration-damped and maintenance-free sealed bearings make the unit ideal for continuous-duty agricultural, construction and standby-power applications.
Interchange part numbers:
PERKINS 3860189, 4132A008, 4132A014, ULPK0041; MASSEY FERGUSON 3638721M91, 4226484M1, 4226937M91; LANDINI 747602M91; JCB 17/927800; FG Wilson 10000-65694, 10000-04029; CAT 1R-0793, 232-7808, 270-6992, 357-4187.
