| Place of Origin: | China |
| Brand Name: | Wespc |
| Certification: | ISO9001 |
| Model Number: | CH10056 |

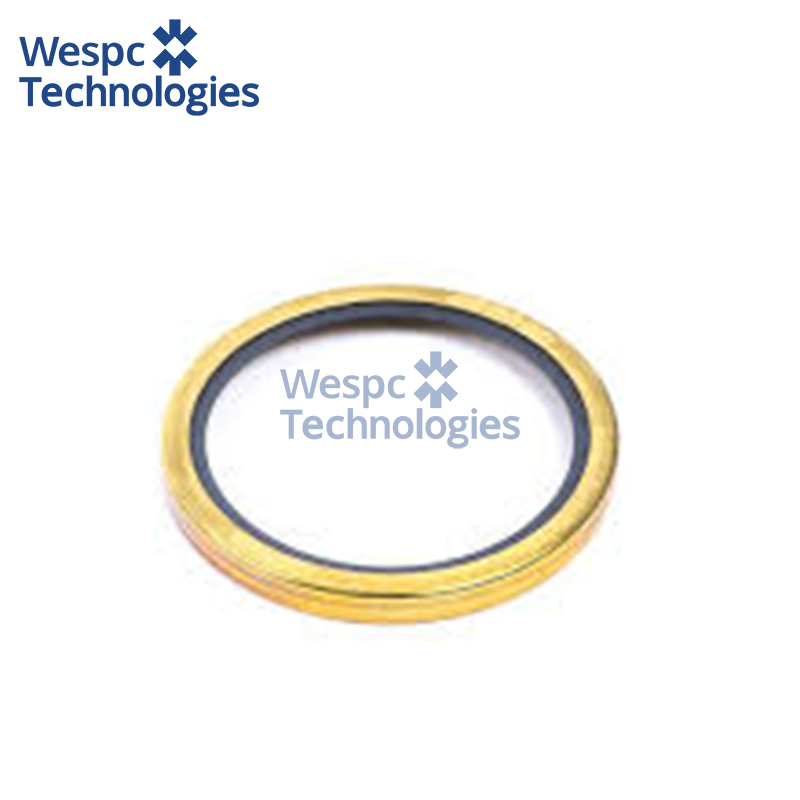

WESPC CH10056 Thermostat Seal for Perkins Engines Aftermarket Replacement
| Brand Name | WESPC |
| Place of Origin | China |
| Part Number | CH10056 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
WESPC CH10056 thermostat gasket seal is designed for Perkins 2506TAG3, 2506TAG4, and 2506C diesel engines. It forms a flat sealing interface between the thermostat and housing groove, preventing coolant leakage and ensuring stable thermal regulation during engine operation.
Generator sets:
Applied in 400–750 kVA Perkins-powered gensets, including 2506TAG3 and 2506TAG4 models. The CH10056 seal supports consistent coolant flow and thermal containment under high-load conditions.
Industrial systems:
Suitable for diesel-driven pumps and compressors using Perkins 6-cylinder engines. It maintains sealing integrity under vibration and temperature fluctuation.
Technical specifications:
Part number: CH10056
Function: thermostat gasket seal
Material: NBR rubber
Compatible engines: Perkins 2506TAG3, 2506TAG4, 2506C
Dimensions: approx. 68 mm outer diameter × 7 mm thickness
Warranty: 12 months
Interchange part number:
CH10056; verified fitment for Perkins 2506-series engines
