| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 4134W025 T433412 4132W021 |

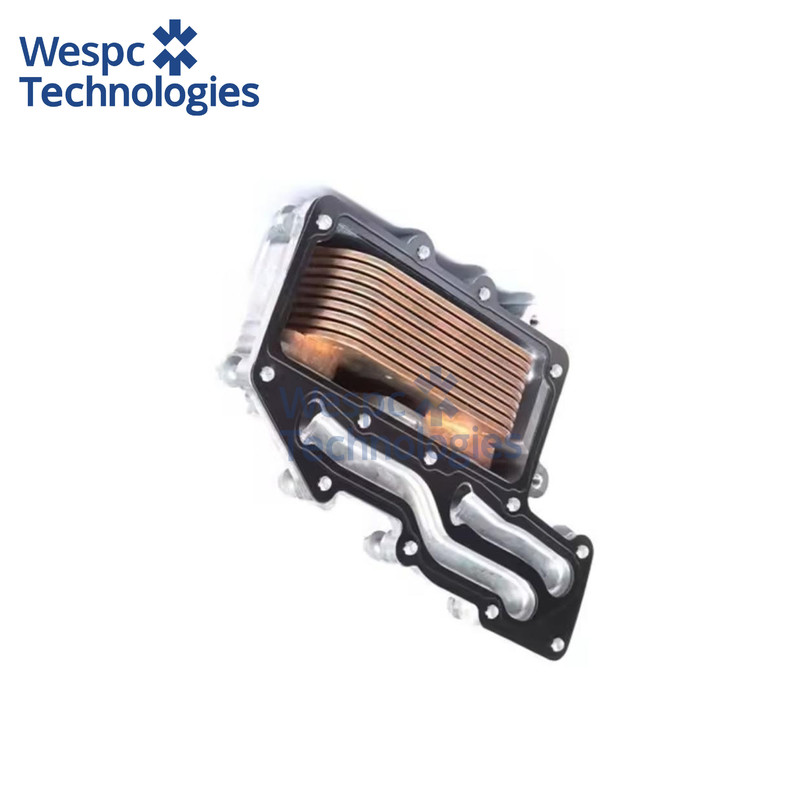

WESPC Oil Cooler 4134W025 T433412 4132W021 Construction Machinery Parts For Perkins
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
4134W025 T433412 4132W021 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
The 4134W025, T433412 and 4132W021 oil coolers are built for the Perkins 1104 Series engines, specifically the 1104A-44, 1104C-44, 1104C-44T, 1104C-E44 and 1104D-44 turbo-charged four-cylinder 4.4 L diesels that power Massey Ferguson 5400, 6400 and 7400 series tractors, JCB 3CX backhoe loaders, Landini Rex and Legend tractors, Fastrac utility vehicles, 50–100 kVA generator sets and the latest generation of compact telehandlers and skid-steer loaders. Because the 1104 family succeeded the 4.236/T4.236/AT4.236 4.0 L engines and retained the same block-mounted heat-exchange interface, these coolers are also retro-fitted to earlier 4.236 derivatives during major overhaul, giving them a broad service footprint across agricultural tractors, combine harvesters, generator sets and industrial machinery.
Technical specifications:
The cooler is a 14-plate, donut-type heat exchanger that nests in the 98.48 mm counterbore of the cylinder block. Plate stack outside diameter is 114 mm, overall height including the sealing flange is 82 mm, and fourteen internally-turbulated stainless-steel plates deliver an oil-side heat-transfer area of 570 cm².
Material & performance features:
The plate pack is vacuum-brazed 304 stainless steel for maximum resistance to chloride corrosion from modern long-life coolants, while the aluminium shell is hard-anodised to MIL-A-8625 Type II for superior salt-spray and chemical resistance.
Interchange part numbers:
4134W025, T433412, 4132W021, 929-363, 118-9145
