| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 4133Y042 |

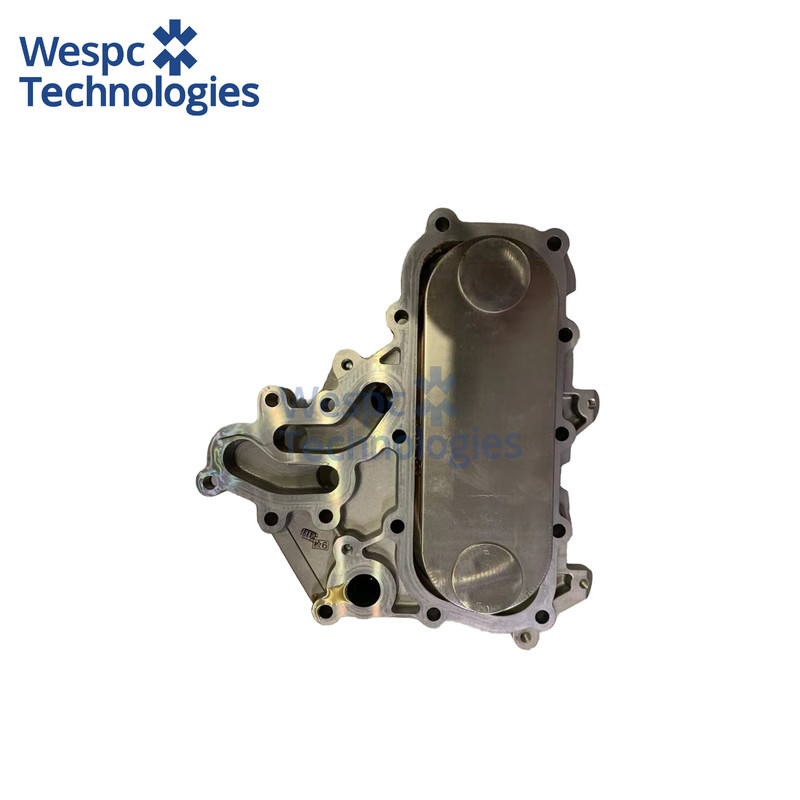

WESPC Oil Cooler 4133Y042 Construction Machinery Parts For Perkins C4.4
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
4133Y042 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
The cooler is a plate-fin, brazed-aluminium core measuring approximately 290 mm overall length, 210 mm width and 55 mm thickness, with a 6 kg net weight. It carries an internal oil volume of 0.9 L and is rated for continuous operating pressure up to 10 bar and peak pressure of 14 bar.
Material & performance features:
The core matrix is manufactured from marine-grade 3003 aluminium alloy fins and 6063-T5 seamless tubes, furnace-brazed for a joint strength that exceeds parent metal and delivers excellent resistance to vibration and thermal shock. End caps are cast from high-silicon aluminium, CNC-machined to ±0.05 mm tolerance and powder-coated for corrosion resistance.
Interchange part numbers:
4133Y042, 2486A002, 4133Y047, 2486A003, 4133Y048, 2486A004, 4133Y049, 2486A005, 4133Y051, 2486A006, 4133Y052, 2486A007, 4133Y053, 2486A008, 4133Y054, 2486A009, 4133Y055, 2486A010, 4133Y056, 2486A011, 4133Y057, 2486A012, 4133Y058, 2486A013, 4133Y059, 2486A014, 4133Y060, 2486A015, 4133Y061, 2486A016, 4133Y062, 2486A017, 4133Y063, 2486A018, 4133Y064, 2486A019, 4133Y065, 2486A020, 4133Y066, 2486A021, 4133Y067, 2486A022, 4133Y068, 2486A023, 4133Y069, 2486A024, 4133Y070, 2486A025
