| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 4134W025 |

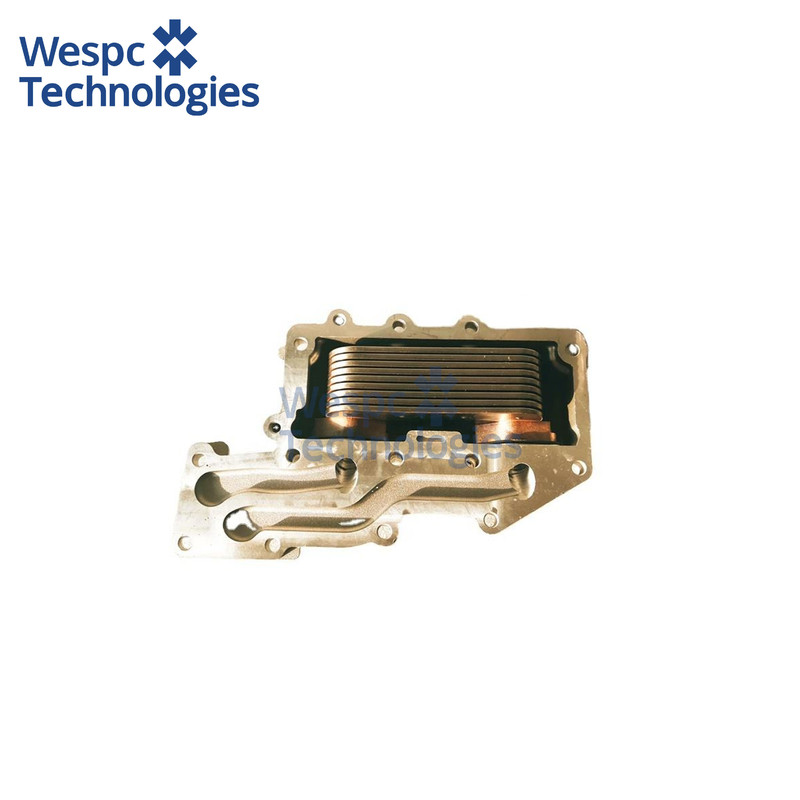

WESPC Oil Cooler 4134W025 Construction Machinery Parts For Perkins 1104
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
4134W025 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
The cooler is a brazed-aluminium plate-fin core measuring 265 mm in overall length, 200 mm width and 50 mm thickness, weighing 4.8 kg. Its internal oil volume is 0.8 L and the heat-rejection capacity is 16 kW at 90 °C oil-in temperature and a 40 °C coolant delta-T, ensuring that oil outlet temperature remains below 95 °C under full load.
Material & performance features:
The core matrix is produced from 3003 high-silicon aluminium fins and 6061-T6 seamless tubes, furnace-brazed for a joint strength that exceeds parent metal and vibration fatigue life in excess of 5 million cycles. End caps are die-cast from aluminium-silicon alloy, CNC-machined to ±0.05 mm and powder-coated for 500 h salt-spray durability.
Interchange part numbers:
4134W025, 4134W001, 2486A217, 2486A002, 4134W013, 4134W021, 4134A024, 4134E031, 4134E037, 4134E043, 4134E045, 4134E052, 4134K011, 4134K016, 4134K021, 4134K022, 4134K023, 4134M031, 4134M032, 4134C005, 4134C011, 4134C012, 4134C014, 4134C016, 4134C018, 4134C022, 4134C023, 4134C024, 4134C025, 4134C028, 4134C029, 4134C036, 4134C041, 4134C042, 4134C044, 4134C051, 4134C053, 4134C055, 4134C059, 4134C063, 4134C064, 4134C065, 4134C067, 4134C068, 4134C069, 4134C071, 4134C072, 4134C073, 4134C074, 4134C075, 4134C076, 4134C077, 4134C081, 4134C082, 4134E014, 4134E016, 4134E017, 4134E018, 4134E021, 4134E027, 4134E028, 4134E029, 4134E052, 4134E053, 4134E054, 4134E055, 4134E059, 4134E063, 4134E065, 4134E067, 4134E068, 4134E071, 4134E074.
