| Place of Origin: | United Kingdom |
| Brand Name: | DSE |
| Certification: | ISO9001 |
| Model Number: | DSE2157 |

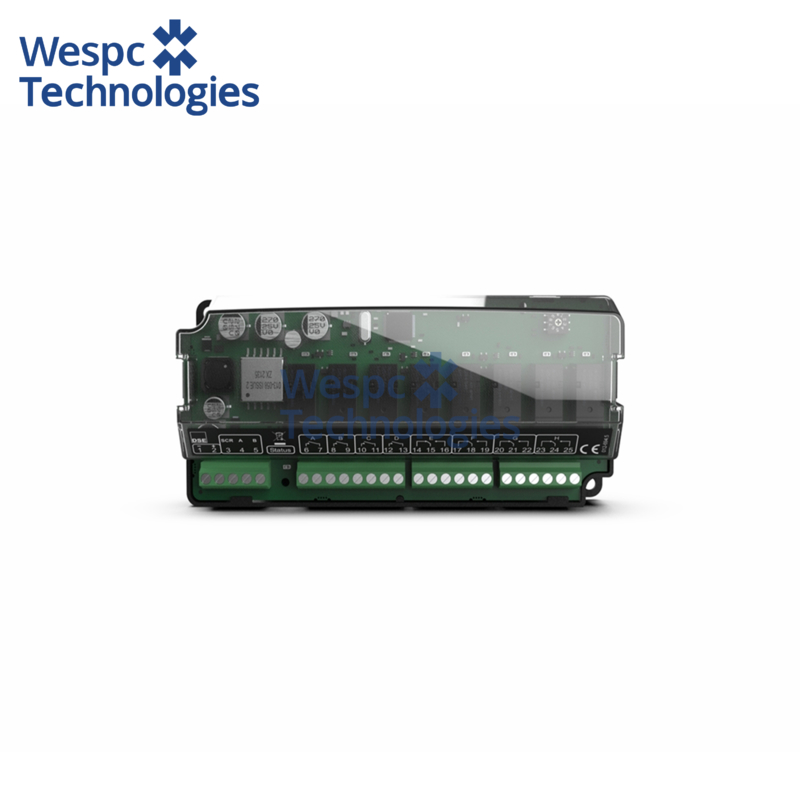

WESPC Original Deep Sea DSE2157 DSENet Output Expansion Module
|
MOQ
|
1pcs
|
|
Product Name |
DSENet® Output (8) Expansion Module |
|
Application
|
Diesel generator
|
|
Marketing Type
|
Ordinary Product
|
|
Color
|
Black |
|
Material
|
Plastic
|
DSE2157
DSENet® Output (8) Expansion Module
The DSE2157 is an output relay expansion module providing 8 additional outputs to the control system. Up to 10 x DSE2157 modules can be linked to together to provide increased output options.
Designed to give greater output flexibility for meeting complex industry generator control specifications. The module includes eight configurable relay contacts with LED indicators. These can be configured as 4 normally open and 4 normally closed. All configurations are controlled within the host control module.
OVERALL SIZE
165 mm x 76 mm x 49 mm (6.5” x 3.0” x 1.9”)
WEIGHT
0.28kg
PRODUCT VARIANTS
2157-01 - 2157 Output Expansion Module
