| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 2486A242 |

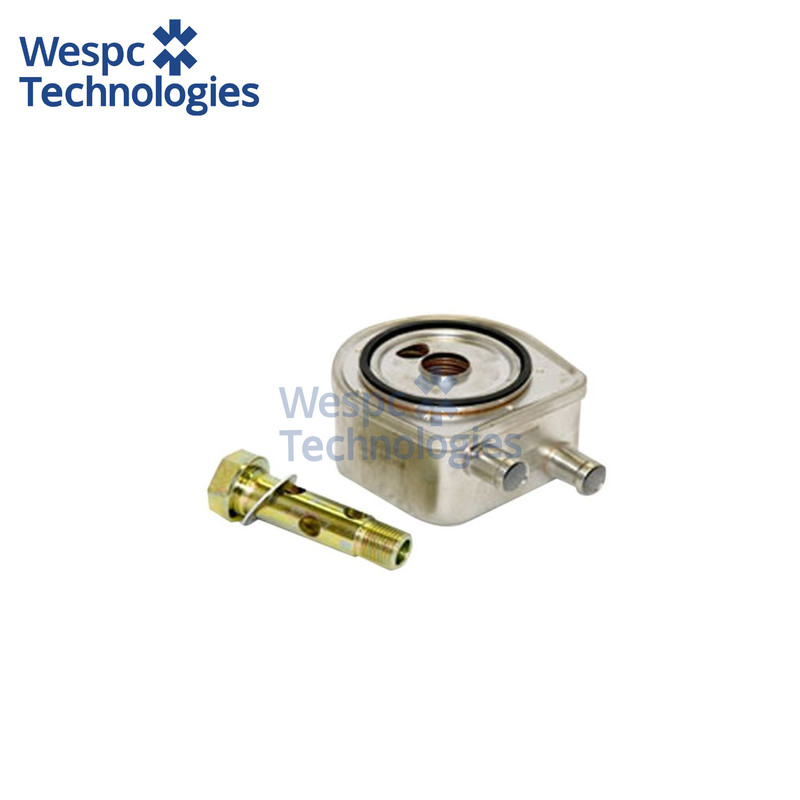

WESPC Oil Cooler 2486A242 For Perkins 1004-4 1004-4T Diesel Engine
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
2486A242 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
The cooler is a plate-fin, brazed-aluminium heat exchanger measuring 230 mm overall length, 190 mm width and 45 mm depth with a net weight of 3.7 kg. It houses 0.7 L of internal oil volume and is rated for 13 kW heat rejection at 90 °C oil-in temperature and 40 °C coolant delta-T, keeping oil outlet temperature below 95 °C under full load.
Material & performance features:
The core is constructed from 3003 high-silicon aluminium fins and 6061-T6 seamless tubes, furnace-brazed at 600 °C for joint strength exceeding parent metal and vibration fatigue resistance beyond 5 million cycles.
Interchange part numbers:
2486A242, 2486A221, 2486A972, 2486A241, 2486A243, 2486A244, 2486A245, 2486A246, 2486A247, 2486A248, 2486A249, 2486A250, 2486A251, 2486A252, 2486A253, 2486A254, 2486A255, 2486A256, 2486A257, 2486A258, 2486A259, 2486A260, 2486A261, 2486A262, 2486A263, 2486A264, 2486A265, 2486A266, 2486A267, 2486A268, 2486A269, 2486A270, 2486A271, 2486A272, 2486A273, 2486A274, 2486A275, 2486A276, 2486A277, 2486A278, 2486A279, 2486A280, 2486A281, 2486A282, 2486A283, 2486A284, 2486A285, 2486A286, 2486A287, 2486A288, 2486A289, 2486A290, 2486A291, 2486A292, 2486A293, 2486A294, 2486A295, 2486A296, 2486A297, 2486A298, 2486A299, 2486A300.
