| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 1824735C1 |

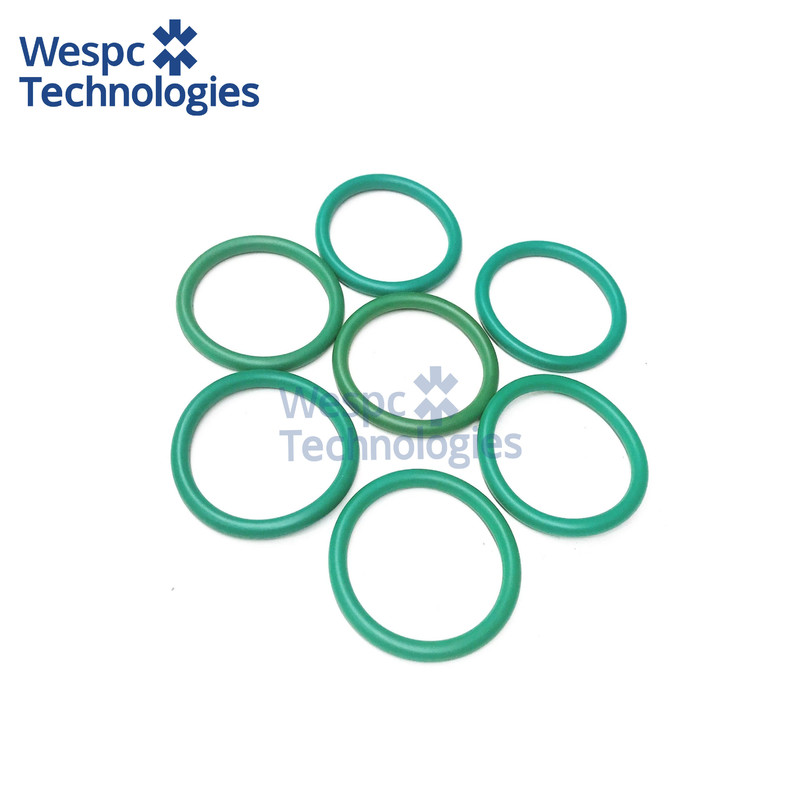

WESPC Oil Cooler O-Ring 1824735C1 Compatible With Navistar International 1552SC 4600
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
1824735C1 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
Inside diameter 2.59 in (65.8 mm), cross-section 0.305 in (7.75 mm), overall thickness 0.31 in (7.9 mm), durometer 75 ±5 Shore A, tolerance ±0.15 mm on both ID and thickness to ensure positive seal compression without distortion at 6 bar working pressure and 150 °C peak temperature.
Material & performance features:
Molded from high-temperature fluorocarbon FKM compound, the ring resists diesel, engine oil, coolant and ozone aging while maintaining elasticity from –40 °C to 200 °C; precision flash-free trimming and surface micro-finish reduce friction during assembly and prevent micro-leak paths, giving dependable 100 000 km service life under typical duty cycles.
Interchange part numbers:
PERKINS 1824735C1, 2486A023, 4134W027; MASSEY FERGUSON 3638721M91; LANDINI 747602M91; reference numbers 1C3Z-6C610-BA, WG1104543.
