| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | U85246210 |

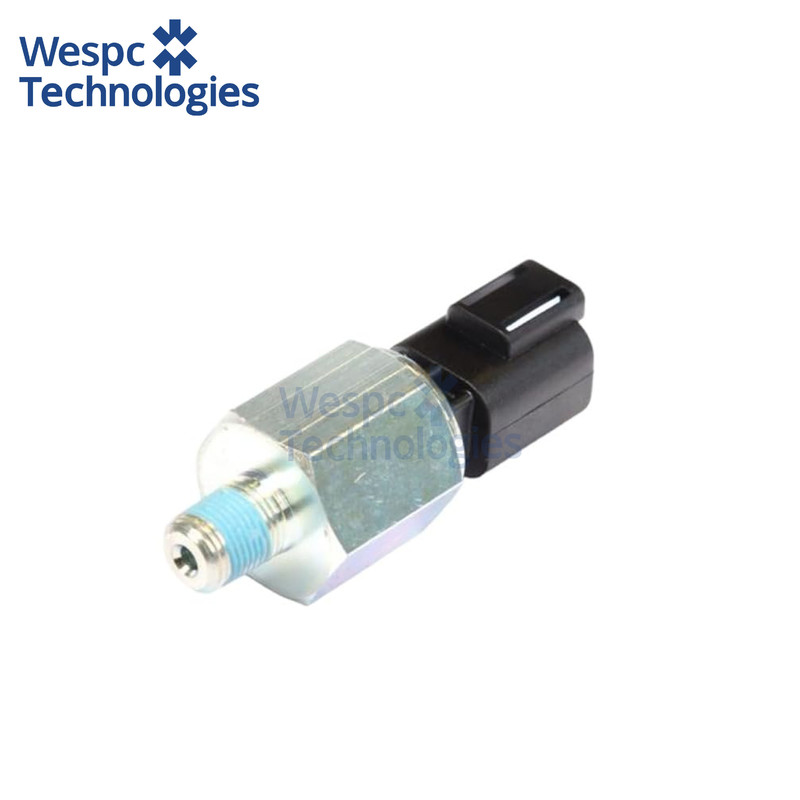

WESPC Oil Pressure Sensor U85246210 For Perkins Engine 404D-22 404C-22 403D-17
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
U85246210 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
The unit is a three-wire piezo-resistive pressure transducer housed in a brass body with a 1/8" NPTF male thread and 19 mm hex. It measures 0–10 bar (0–145 psi) with ±2 % full-scale accuracy, outputs a linear 0.5–4.5 V signal referenced to a 5 V supply and draws less than 10 mA at 12 V. Operating temperature spans –40 °C to +125 °C and the sensor withstands 1 000 h salt-spray exposure per ASTM B117.
Material & performance features:
The sensing diaphragm is 17-4 PH stainless steel, laser-welded to the brass body for absolute hermetic sealing and protected by a sintered brass snubber that damps pressure pulsations and prevents oil-borne debris from reaching the element. Internal circuitry is over-moulded in high-temperature PPS resin, achieving IP67 ingress protection and surviving 500 thermal-shock cycles from –40 °C to +125 °C without calibration drift.
Interchange part numbers:
U85246210, 185246210, 404D-22-1, 404D-22-2, 404D-22-3, 404D-22-4, 404D-22-5, 404D-22-6, 404D-22-7, 404D-22-8, 404D-22-9, 404D-22-10, 404D-22-11, 404D-22-12, 404D-22-13, 404D-22-14, 404D-22-15, 404D-22-16, 404D-22-17, 404D-22-18, 404D-22-19, 404D-22-20.
