| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 2848A116 |

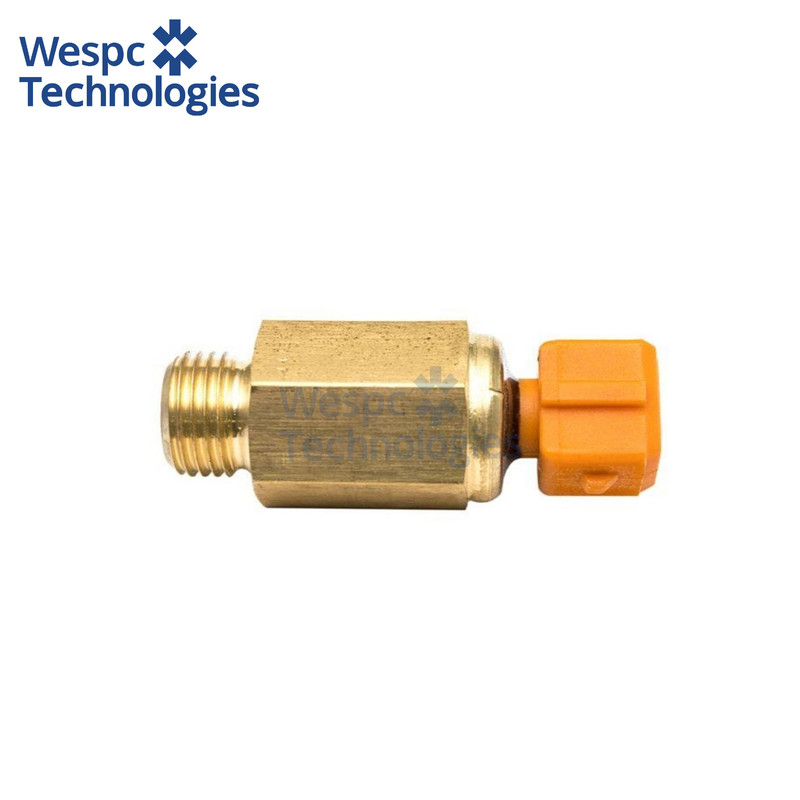

WESPC Water Temperature Sensor 2848A116 For Perkins 4.236 Diesel Engine
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
2848A116 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
The sensor body is a brass forging with 1/8" NPTF male thread and 19 mm hex, measuring 58 mm overall length and weighing 115 g. It employs a negative-temperature-coefficient (NTC) thermistor whose resistance decreases from 10 kΩ ±3 % at 25 °C to 184 Ω ±10 % at 100 °C, producing a steep and repeatable curve that the ECU can resolve to ±1 °C. Response time from 25 °C to 100 °C in flowing coolant is less than 15 seconds.
Material & performance features:
The sensing element is a glass-encapsulated NTC bead that is thermally bonded to the brass probe tip for rapid heat transfer and excellent long-term stability. The body is nickel-plated for corrosion resistance and over-moulded with high-temperature PPS resin achieving IP67 ingress protection.
Interchange part numbers:
2848A116, 2755885, 2755A006, 1830669C92, 701-37400, 701-37400-0, 701-37400-1, 701-37400-2, 701-37400-3, 701-37400-4, 701-37400-5, 701-37400-6, 701-37400-7, 701-37400-8, 701-37400-9, 701-37400-10, 701-37400-11, 701-37400-12, 701-37400-13, 701-37400-14, 701-37400-15, 701-37400-16, 701-37400-17, 701-37400-18, 701-37400-19, 701-37400-20.
