| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 2874A018 |

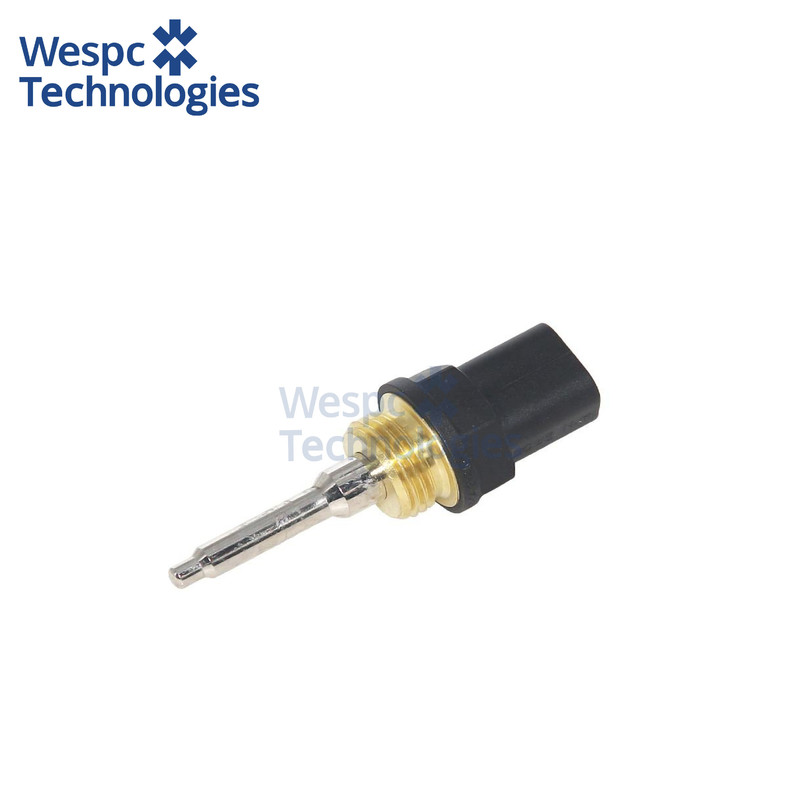

WESPC Temperature Sensor 2874A018 For Perkins 1104 Diesel Engine
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
2874A018 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
The unit is a brass-bodied NTC (negative-temperature-coefficient) sensor with 1/8" NPTF male thread and 19 mm hex, 58 mm overall length and 115 g mass. Its resistance falls from 10 kΩ ±3 % at 25 °C to 184 Ω ±10 % at 100 °C, delivering a steep, repeatable curve that the ECU can resolve to ±1 °C. Response time from ambient to operating temperature in flowing coolant is less than 15 seconds.
Material & performance features:
The sensing element is a glass-encapsulated NTC bead thermally bonded to the brass probe tip for rapid heat transfer and excellent long-term stability. The body is nickel-plated for corrosion resistance and over-moulded in high-temperature PPS resin, achieving IP67 ingress protection.
Interchange part numbers:
2874A018, 2874A002, 1754-0349, 4224820M1, 4226155M1, AG131215, WR131215, 268-436, 2874A019, 2874A020, 2874A021, 2874A022, 2874A023, 2874A024, 2874A025, 2874A026, 2874A027, 2874A028, 2874A029, 2874A030, 2874A031, 2874A032, 2874A033, 2874A034, 2874A035, 2874A036, 2874A037, 2874A038, 2874A039, 2874A040
