| Place of Origin: | China |
| Brand Name: | Wespc |
| Certification: | ISO9001 |
| Model Number: | 3135X062 |

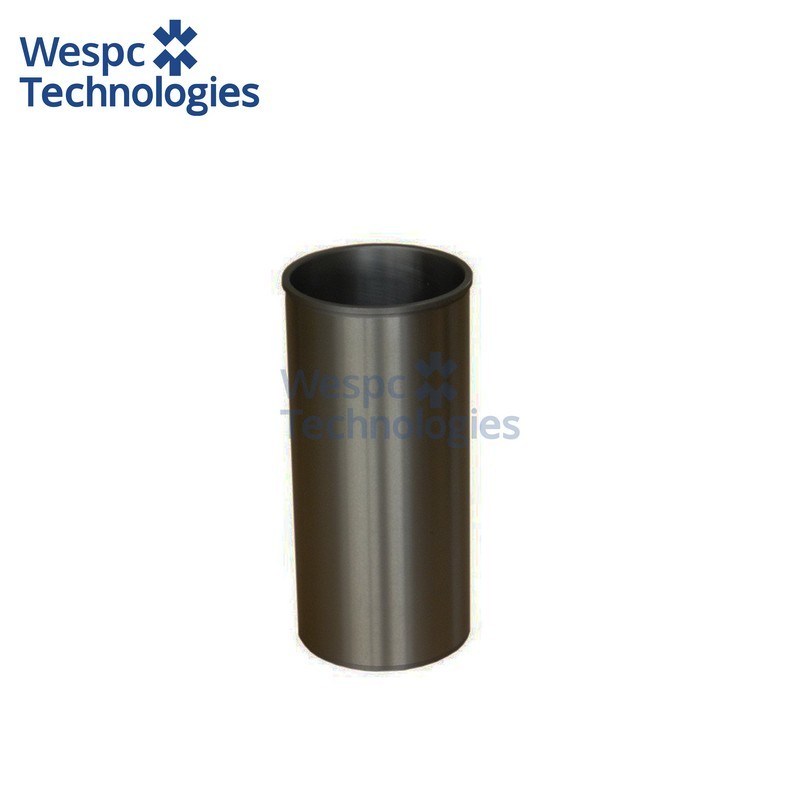

WESPC 3135X062 cylinder liner for Perkins 1004 1006 series diesel engines
| Brand Name | WESPC |
| Place of Origin | China |
| Part Number | 3135X062 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application
WESPC 3135X062 cylinder liner sleeve is designed for Perkins 1004 and 1006 series diesel engines. This semi-finished wet-type liner is inserted into the engine block with direct coolant contact, forming the combustion chamber wall and allowing final honing during engine rebuilds. Its fire ring design enhances sealing under high-pressure combustion, making it suitable for medium-duty diesel platforms.
Generator sets
Used in 100–200 kVA Perkins-powered generator sets equipped with 1000 series engines. The 3135X062 liner ensures consistent compression and thermal regulation, supporting fuel efficiency and long-term reliability in industrial and commercial power systems.
Industrial systems
Applicable to Perkins 4-cylinder and 6-cylinder engines installed in agricultural tractors, irrigation pumps, and construction machinery. Its semi-finished bore allows for precision machining to match rebuild tolerances, ensuring optimal piston fit and extended engine life in demanding environments.
Technical specifications
Part number: 3135X062
Function: semi-finished wet-type cylinder liner sleeve with fire ring
Material: high-strength alloy cast iron
Compatible engines: Perkins 1004, 1006 series
Dimensions: approx. 105 mm bore × 135 mm stroke
Warranty: 12 months
Interchange part number 3135X062; verified fitment for Perkins 1000 series engines in generator and industrial applications
