| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 2848A102 |

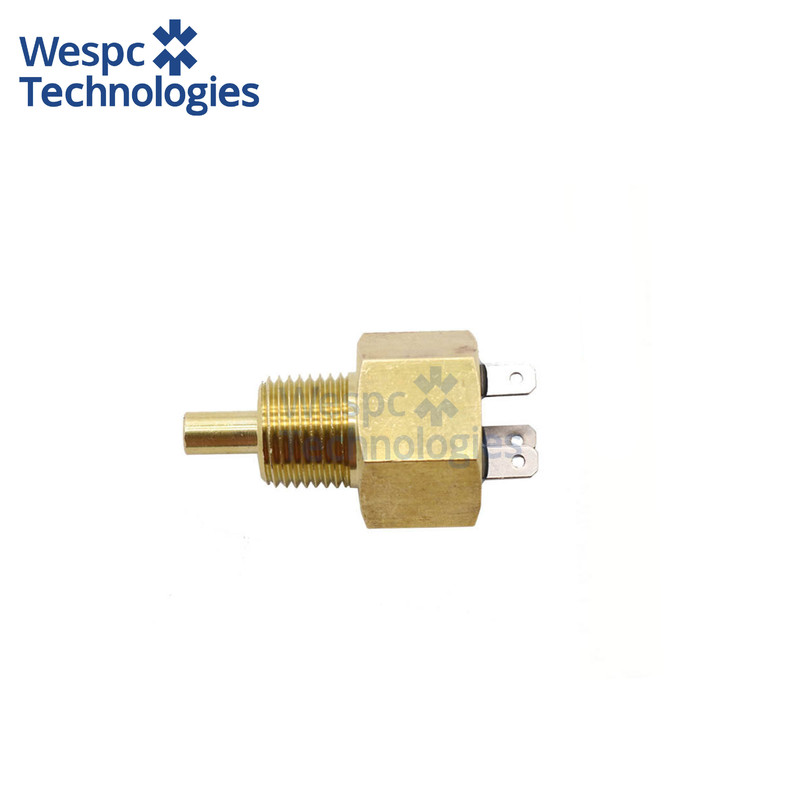

WESPC Water Temperature Sensor 2848A102 For Perkins Engine 1004-4 1004-4T 1004-40T
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
2848A102 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
The unit is a brass-bodied NTC (negative-temperature-coefficient) sensor with 3/8" BSPP male thread and 22 mm hex, 56 mm overall length and 115 g mass. Its resistance falls from 9.8 kΩ ±3 % at 25 °C to 180 Ω ±10 % at 100 °C, delivering a steep, repeatable curve that the ECU can resolve to ±1 °C.
Material & performance features:
The sensing element is a glass-encapsulated NTC bead thermally bonded to the brass probe tip for rapid heat transfer and long-term stability. The body is nickel-plated for corrosion resistance and over-moulded in high-temperature PPS resin, achieving IP67 ingress protection. A fluorosilicone O-ring and integrated steel shield prevent moisture ingress during thermal cycling from –40 °C to +120 °C.
Interchange part numbers:
2848A102, 2848A102-01, 2848A102-02, 2848A102-03, 2848A102-04, 2848A102-05, 2848A102-06, 2848A102-07, 2848A102-08, 2848A102-09, 2848A102-10.
