| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 2848A051 |

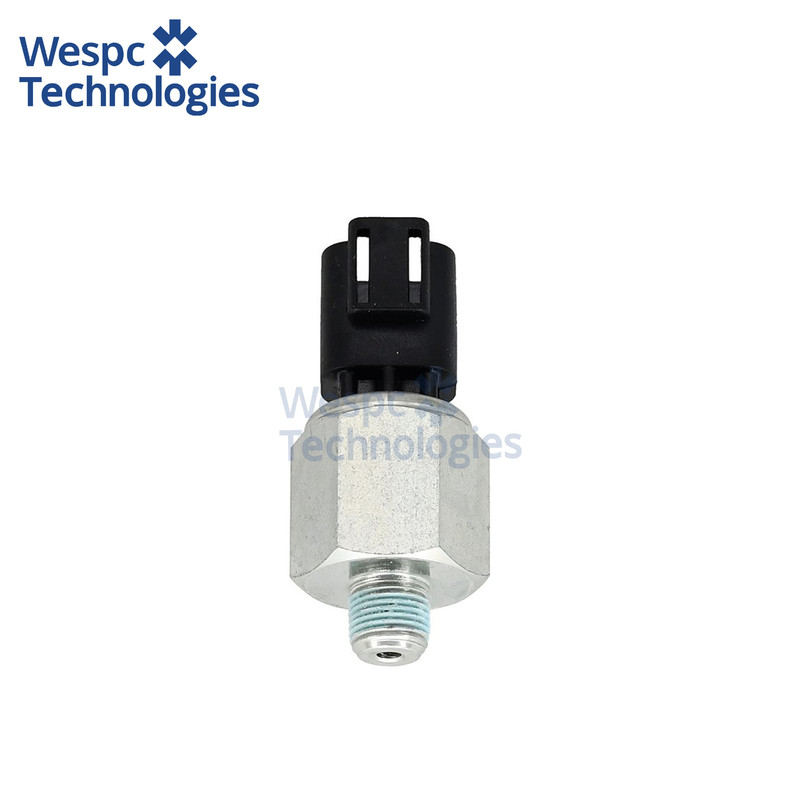

WESPC Oil Pressure Sensor 2848A051 For Perkins 1103C-33T 1103D-33T 1104C-44
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
2848A051 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
The unit is a three-wire piezo-resistive pressure transducer housed in a corrosion-resistant brass body with 1/8" NPTF male thread and 19 mm hex, 58 mm overall length and 70 g net weight. It measures 0–10 bar (0–145 psi) with ±2 % full-scale accuracy, outputs a linear 0.5–4.5 V signal referenced to a 5 V supply and draws <10 mA at 12 V.
Material & performance features:
The sensing diaphragm is 17-4 PH stainless steel, laser-welded to the brass body for absolute hermetic sealing and protected by a sintered brass snubber that damps pressure pulsations and prevents oil-borne debris from reaching the element. Internal circuitry is over-moulded in high-temperature PPS resin, achieving IP67 ingress protection and surviving 500 thermal-shock cycles from –40 °C to +125 °C without calibration drift.
Interchange part numbers:
2848A051, 4172E054, 218113A1, 4226184M91, 10000-63033, 10000-61795, 2874A007, 10000-63033-01, 10000-61795-01, 2848A051-01, 4172E054-01, 218113A1-01, 4226184M91-01, 2874A007-01.
