| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 185246180 |

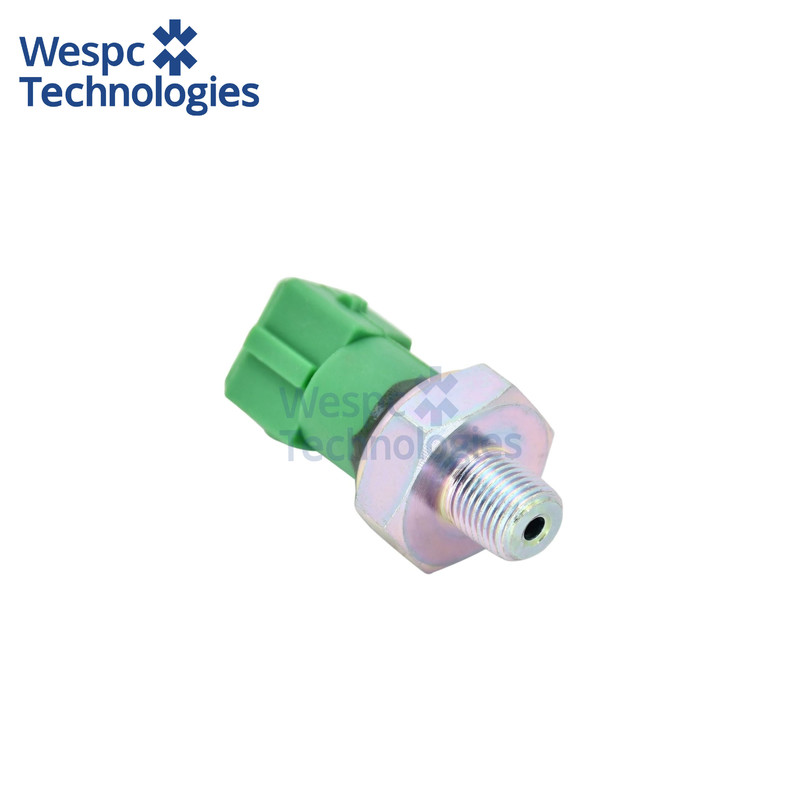

WESPC Oil Pressure Sensor 185246180 For Perkins 403C-15 404C-22 404C-22T
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
185246180 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
The unit is a three-wire piezo-resistive pressure transducer housed in a brass body with 1/8" NPTF male thread and 19 mm hex, 58 mm overall length and 70 g net weight. It measures 0–10 bar (0–145 psi) with ±2 % full-scale accuracy, outputs a linear 0.5–4.5 V signal referenced to a 5 V supply and draws <10 mA at 12 V.
Material & performance features:
The sensing diaphragm is 17-4 PH stainless steel, laser-welded to the brass body for absolute hermetic sealing and protected by a sintered brass snubber that damps pressure pulsations and prevents oil-borne debris from reaching the element. Internal circuitry is over-moulded in high-temperature PPS resin, achieving IP67 ingress protection and surviving 500 thermal-shock cycles from –40 °C to +125 °C without calibration drift.
Interchange part numbers:
185246180, 2848A051, T411849, U5MK1074, 2846071, 185246170, 185746120, T407269, T419380, T417897, Krp1688, T410762, T419554, 2755882, T407268, 185246180-01, 2848A051-01, T411849-01, U5MK1074-01, 2846071-01, 185246170-01.
