| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | KRP1551 |

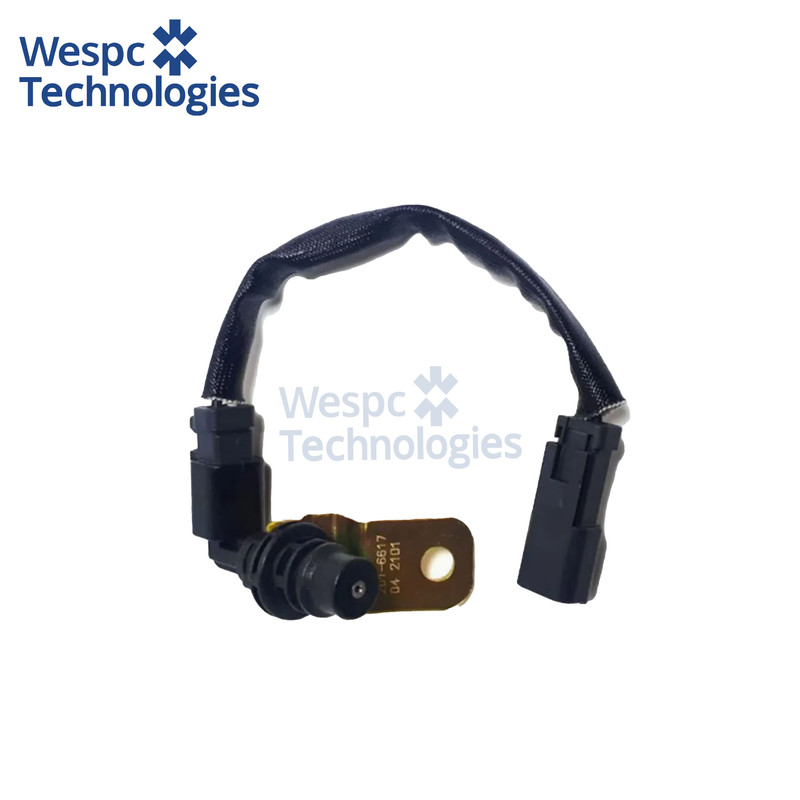

WESPC Speed Sensor KRP1551 For Perkins Engine 2306C 2306D 2806A 2806C
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
KRP1551 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
The unit is a Hall-effect two-wire speed sensor with M12 × 1.5 male thread and 19 mm hex, 50 mm overall length and 90 g net weight. It operates from 8–30 V DC, draws <15 mA and delivers a 0–5 V square-wave or 0–100 V peak-to-peak sinusoidal signal whose frequency is proportional to engine rpm. Measurement range is 30–6 000 rpm with ±1 % accuracy over –40 °C to +120 °C.
Material & performance features:
The body is machined from 1.4571 (AISI 316Ti) stainless steel for superior corrosion resistance in marine, agricultural and high-humidity environments. The sensing element is encapsulated in high-temperature epoxy resin achieving IP67 ingress protection, and the assembly withstands 1 000 h salt-spray exposure per ASTM B117.
Interchange part numbers:
KRP1551, 997-281, 997281, 188-7511, 996-690, 201-6617, 997-282, 997282, 997-281-01, 997281-02, 997281-03, 997281-04, 997281-05, 997281-06, 997281-07, 997281-08, 997281-09, 997281-10.
