| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | T419414 |

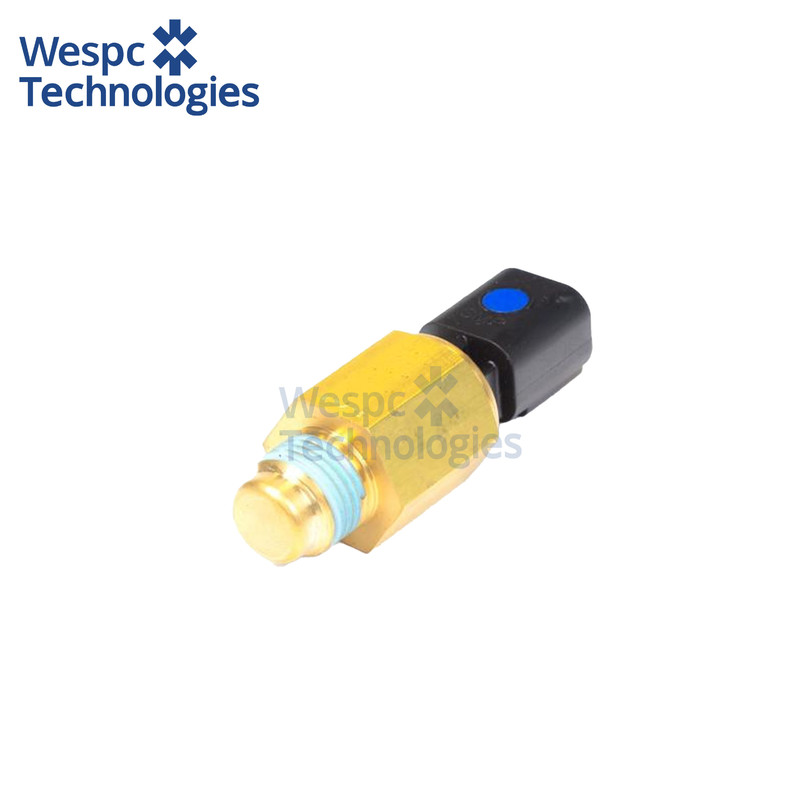

WESPC Water Temperature Sensor T419414 For Perkins Engine 400 Series
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
T419414 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
The unit is a brass-bodied NTC (negative-temperature-coefficient) sensor with 3/8" BSPP male thread and 22 mm hex, 58 mm overall length and 115 g mass. Its resistance falls from 9.8 kΩ ±3 % at 25 °C to 180 Ω ±10 % at 100 °C, producing a steep, repeatable curve that the ECU can resolve to ±1 °C.
Material & performance features:
The sensing element is a glass-encapsulated NTC bead thermally bonded to the brass probe tip for rapid heat transfer and long-term stability. The body is nickel-plated for corrosion resistance and over-moulded in high-temperature PPS resin to achieve IP67 ingress protection. A fluoro-silicone O-ring and an integrated steel shield prevent moisture ingress during thermal cycling from –40 °C to +120 °C.
Interchange part numbers:
T419414, 2755A006, 4222194M1, 4223860M1, 934-522, 10000-53881, AG131215, WR131215, 2755A006-01, 4222194M1-01, 4223860M1-01, 934-522-01, 10000-53881-01, T419414-01, T419414-02, T419414-03, T419414-04, T419414-05, T419414-06, T419414-07, T419414-08, T419414-09, T419414-10.
