| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 2874A008 CH12003 |

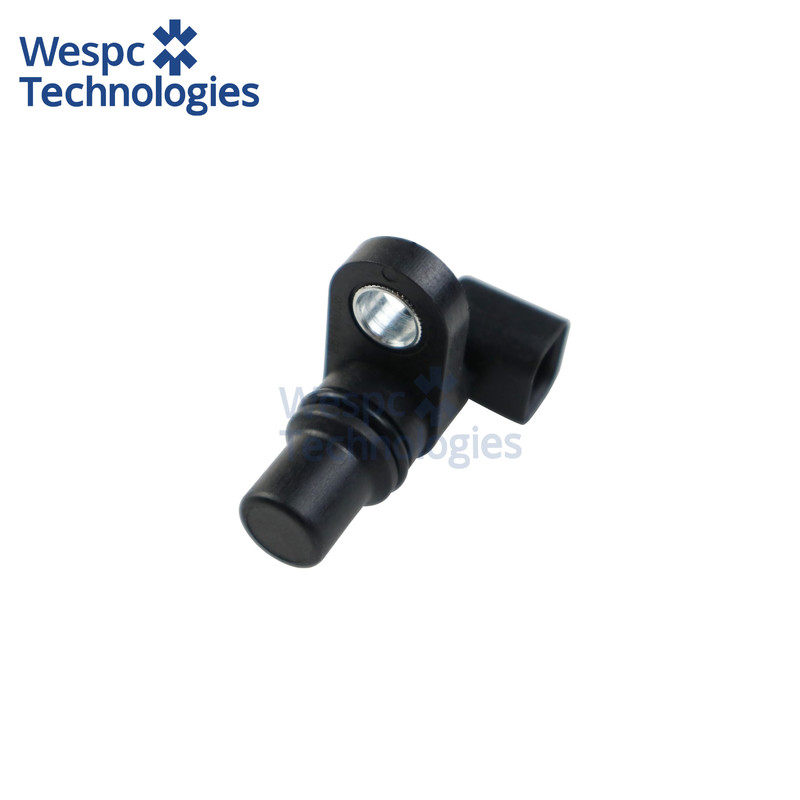

WESPC Crankshaft Speed Sensor 2874A008 CH12003 For Perkins 1104C 1104D 1106D
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
2874A008 CH12003 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
The unit is a Hall-effect / variable-reluctance two-wire sensor with M12 × 1.5 male thread and 19 mm hex, 50 mm overall length and 90 g net weight. It operates from 8–30 V DC, draws <15 mA and delivers a 0–5 V square-wave or 0–100 V peak-to-peak sinusoidal signal whose frequency is proportional to engine rpm.
Material & performance features:
The body is machined from 1.4571 (AISI 316Ti) stainless steel for superior corrosion resistance in marine, agricultural and high-humidity environments. The sensing element is encapsulated in high-temperature epoxy resin achieving IP67 ingress protection, and the assembly withstands 1 000 h salt-spray exposure per ASTM B117.
Interchange part numbers:
2874A008, CH12003, 4226444M91, 923976.4200, U5MK1086, U5MK1234, 2874A008-01, CH12003-01, 4226444M91-01, 923976-4200-01, U5MK1086-01, U5MK1234-01.
