| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | CH12893 |

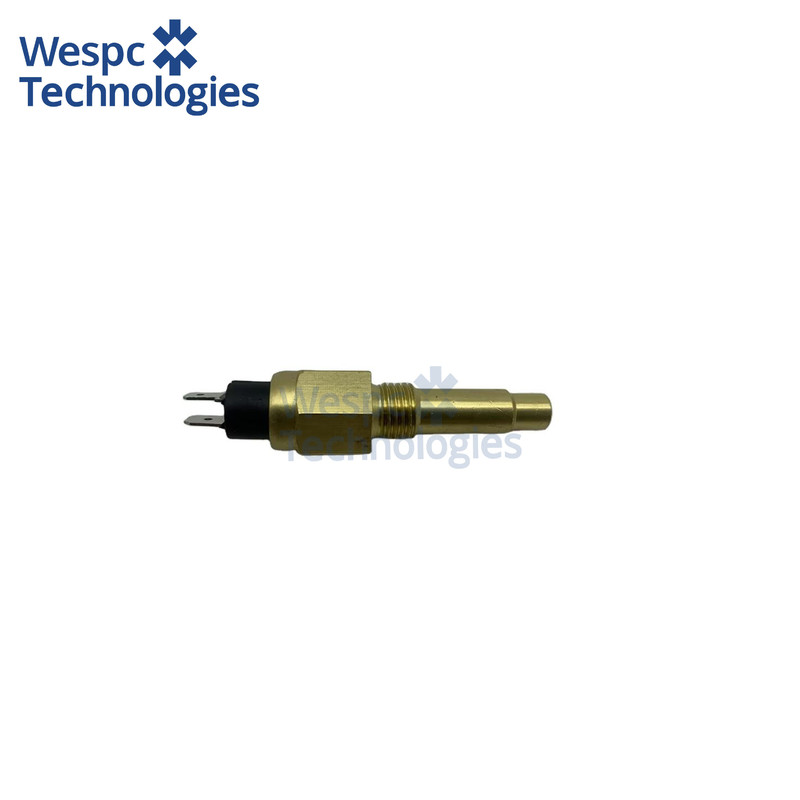

WESPC Water Temperature Sensor CH12893 For Perkins Engine 2506 2806
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
CH12893 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
The sensor body is machined from brass alloy for rapid thermal conductivity and long-term corrosion resistance. It carries a 1/8-27 NPT taper thread that seals directly into the cylinder head water jacket or thermostat housing without additional sealing washers.
Material & performance features:
The sensing element is a sintered bead-type thermistor encapsulated in a stainless-steel probe tip that is resistance-welded to the brass body, eliminating leakage paths. The probe tip is filled with high-purity aluminium oxide powder for vibration damping and thermal coupling. A high-fluoro elastomer grommet seals the wire exit and resists glycol-based coolants, oils and aggressive cleaning agents.
Interchange part numbers:
PERKINS CH12893 CV18338/5, WG1104543, 1158145; MASSEY FERGUSON 3638721M91; LANDINI 747602M91; reference equivalents also listed under 4181A022.
