4115P011 10000-02835
|
| Place of Origin: | China |
| Brand Name: | Wespc |
| Certification: | ISO9001 |
| Model Number: | 4115P011 10000-02835 |

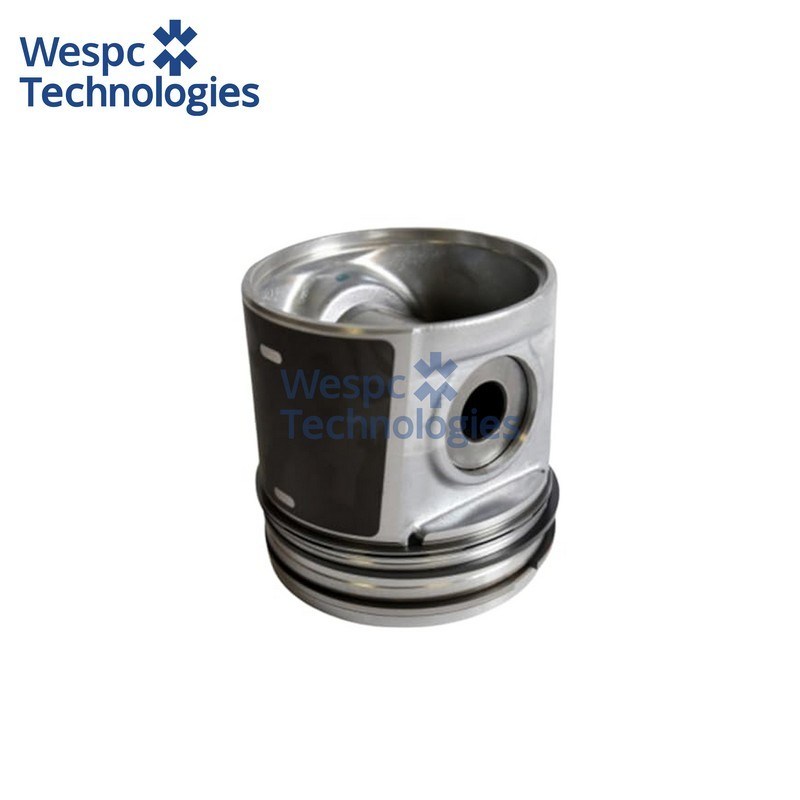

WESPC 4115P011 10000-02835 Piston Kits for Perkins 1103 1104 Series
|
Brand Name |
WESPC |
|
Place of Origin |
China |
|
Part Number |
4115P011 10000-02835
|
|
After-sales Service Provided |
Video Technical Support, Online Support |
|
Marketing Type |
Ordinary Product |
|
Certificate |
ISO9001 |
|
Warranty |
1 Year |
|
Stock |
Yes |
Application
WESPC 4115P011 & 10000-02835 piston kits are designed for Perkins 1103 and 1104 series diesel engines, widely used in Tier 2 agricultural tractors, construction machinery, and mid-range generator sets. These kits restore combustion sealing and oil control in 3- and 4-cylinder platforms operating under medium to high load conditions. Their alloy pistons and multi-ring configurations support emission compliance and long service intervals in Massey Ferguson, FG Wilson, and other OEM-integrated systems.
Generator sets
Applied in Perkins-powered generator sets ranging from 80–150 kVA, especially those equipped with 1103A-33T and 1104C-44T engines. The 4115P011 and 10000-02835 kits ensure consistent compression, reduced blow-by, and stable output under standby and prime power modes.
Industrial systems
Used in wheeled tractors, loaders, and agricultural machinery requiring high torque and thermal resilience. Their surface-treated pistons and precision-machined rings resist wear, scuffing, and fatigue, supporting long operational cycles under variable load and harsh field conditions.
Technical specifications
Part numbers: 4115P011, 10000-02835
Function: piston kit (includes piston, rings, pin, retainers)
Material: eutectic aluminum alloy piston with graphite-coated skirt; steel rings with nitrided and chrome finish
Compatible engines: Perkins 1103A-33T, 1104C-44T
Bore size: 100.00 mm
Warranty: 12 months
Interchange part number
4115P011 / 10000-02835; verified fitment for Perkins 1103 and 1104 series engines used in Massey Ferguson and FG Wilson platforms
