| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 2755A006 |

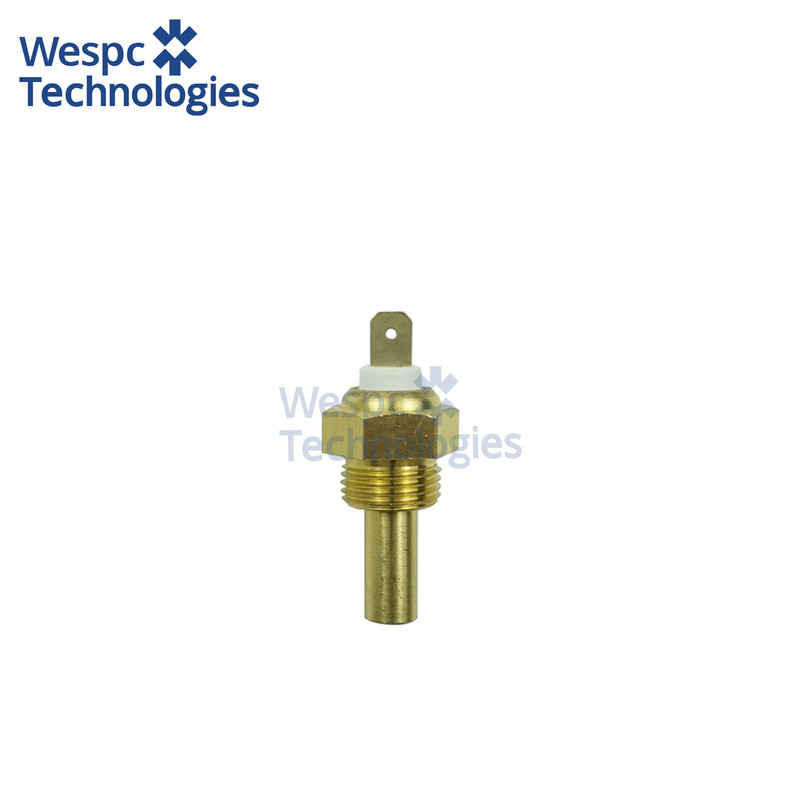

WESPC Water Temperature Sensor 2755A006 For Perkins 1004-42 103-06 103-09 103-10 103-15
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
2755A006 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
Thread geometry is M14 × 1.5 parallel, 19 mm hex and 18 mm probe reach for fast, leak-free installation into the cylinder-head coolant jacket. Sensing range –40 °C to +140 °C using a precision NTC thermistor curve 2 500 Ω @ 20 °C, 300 Ω @ 80 °C, 120 Ω @ 110 °C, tolerance ±2 %. Electrical interface is a two-pin sealed Deutsch DT04-2P connector, IP67 rated, vibration-resistant to 50 g, overall sensor length 50 mm, weight 42 g.
Material & performance features:
Probe body is machined from 1.4571 (AISI 316Ti) stainless steel for complete immunity to glycol, long-life organic-acid coolants and stray galvanic currents; a copper crush-washer and fluorosilicone O-ring provide metal-to-metal sealing up to 3 bar system pressure.
Interchange part numbers:
2755A006, 10000-59831, 2848A111, 185746130, T409471, 385720510, CV24603, 4222198M1, 4224830M1, 2755A010
