| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 2874A003 |

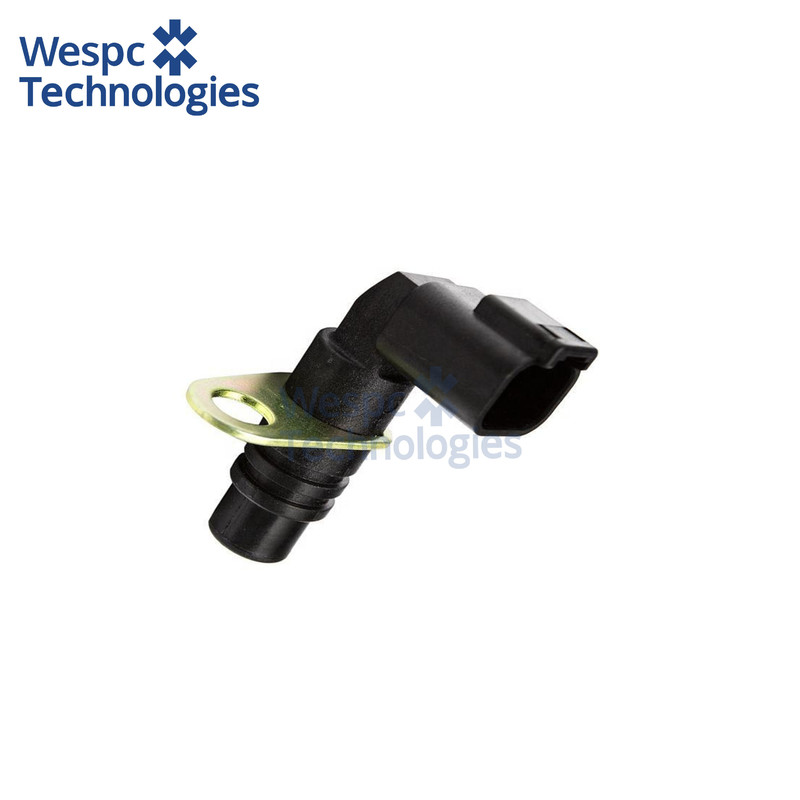

WESPC Speed Sensor 2874A003 For Perkins Engine 1104C-44 1104D-44T 1106D-E70TA
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
2874A003 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
Thread interface M12 × 1.5 with 19 mm hex and 30 mm probe reach for direct mounting into the flywheel housing or timing gear cover. Output signal is digital Hall-effect, 3-wire, 5 Vdc supply, 0–8 kHz frequency range corresponding to 0–8 000 r/min crankshaft speed, load dump and reverse-polarity protected to +40 Vdc.
Material & performance features:
Probe body is precision-machined from 1.4571 (AISI 316Ti) stainless steel for complete immunity to engine oil, coolant splash and road salt; the sensing tip is moulded in PPS polymer rated to 150 °C and incorporates a rare-earth magnet for stable signal amplitude over the full temperature range.
Interchange part numbers:
2874A003, 216-3446, 2163446, 4224821M1, 700895A1, 10000-59832, CV24604, 4222199M1, 4224832M1, 2755A011.
