| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | KRP1700 |

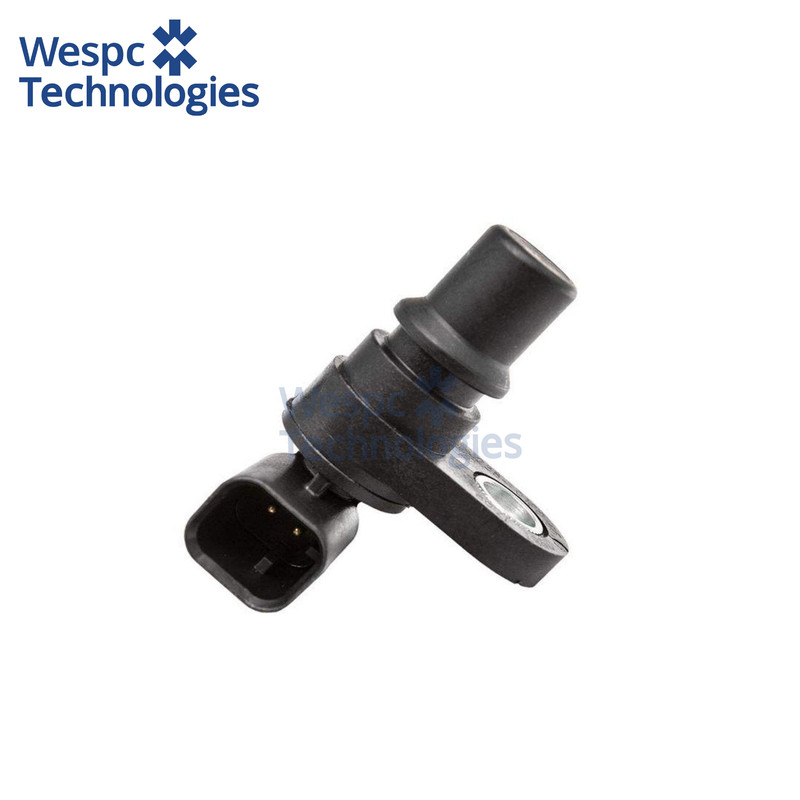

WESPC Camshaft Speed Sensor KRP1700 For Perkins Engine 2206-E13 2506-E15
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
KRP1700 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
Thread interface M16 × 1.5 with 22 mm hex and 37 mm probe reach allow direct installation into the timing-gear cover adjacent to the camshaft reluctor ring. Output is a digital Hall-effect signal, 3-wire, 8–32 Vdc supply, 0–8 kHz frequency range corresponding to 0–4 000 r/min camshaft speed, with built-in reverse-polarity and load-dump protection to +40 Vdc.
Material & performance features:
Probe body is precision-machined from 1.4305 (AISI 303) stainless steel for superior resistance to engine oil, coolant splash and road salt; the sensing tip is over-moulded in high-temperature PPS polymer rated to 150 °C and contains a rare-earth magnet for stable signal amplitude across the full temperature envelope.
Interchange part numbers:
KRP1700, 10000-17089, 279-9829, 1000017089, 4224833M1, 4222200M1, 2755A012
