| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | KRP1705 |

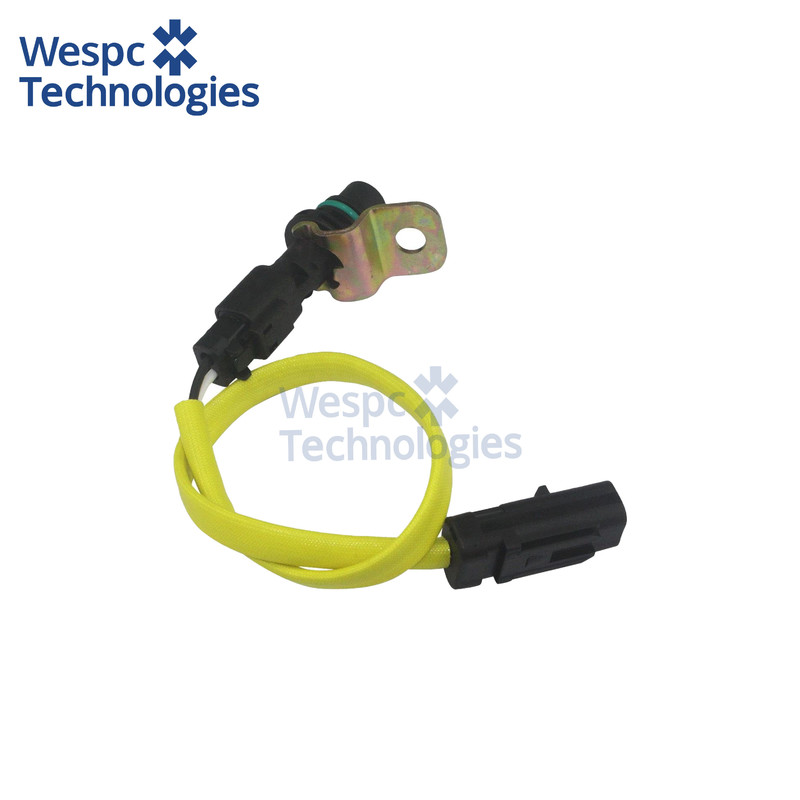

WESPC Crankshaft Speed Sensor KRP1705 For Perkins Engine 2206 2506 2806
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
KRP1705 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
Thread interface M16 × 1.5 with 22 mm hex and 37 mm probe reach allow direct mounting into the flywheel housing adjacent to the crankshaft reluctor ring. Output signal is digital Hall-effect, 3-wire, 8–32 Vdc supply, 0–8 kHz frequency range corresponding to 0–4 000 r/min crankshaft speed, with built-in reverse-polarity and load-dump protection to +40 Vdc.
Material & performance features:
Probe body is precision-machined from 1.4305 (AISI 303) stainless steel for superior resistance to engine oil, coolant splash and road salt; the sensing tip is over-moulded in high-temperature PPS polymer rated to 150 °C and houses a rare-earth magnet for stable signal amplitude across the full temperature envelope.
Interchange part numbers:
KRP1705, 10000-17468, 1000017468, 258-4521, 4224834M1, 4222201M1, 2755A013.
