| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | KRP1687 |

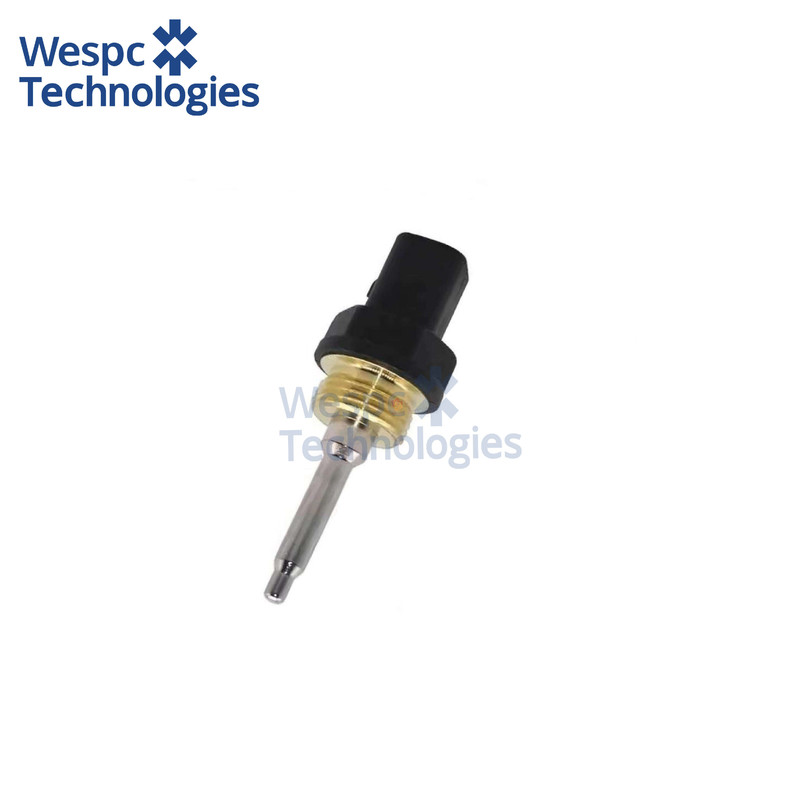

WESPC Water Temperature Sensor KRP1687 For Perkins 2206C-E13TAG2 2506C-E15TAG2
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
KRP1687 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
Thread geometry M16 × 1.5 with 24 mm hex and 20 mm probe reach allows direct insertion into the thermostat housing or cylinder-head coolant gallery. Sensing range –40 °C to +140 °C via a precision NTC thermistor calibrated 2 500 Ω @ 20 °C, 300 Ω @ 80 °C, 120 Ω @ 110 °C, tolerance ±2 %.
Material & performance features:
Probe body is machined from 1.4571 (AISI 316Ti) stainless steel for complete immunity to glycol, long-life organic-acid coolants and galvanic corrosion; a copper crush-washer and fluorosilicone O-ring ensure metal-to-metal sealing up to 3 bar system pressure.
Interchange part numbers:
KRP1687, 10000-17087, 279-9827, 4224835M1, 4222202M1, 2755A014.
