| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 349-2458 |

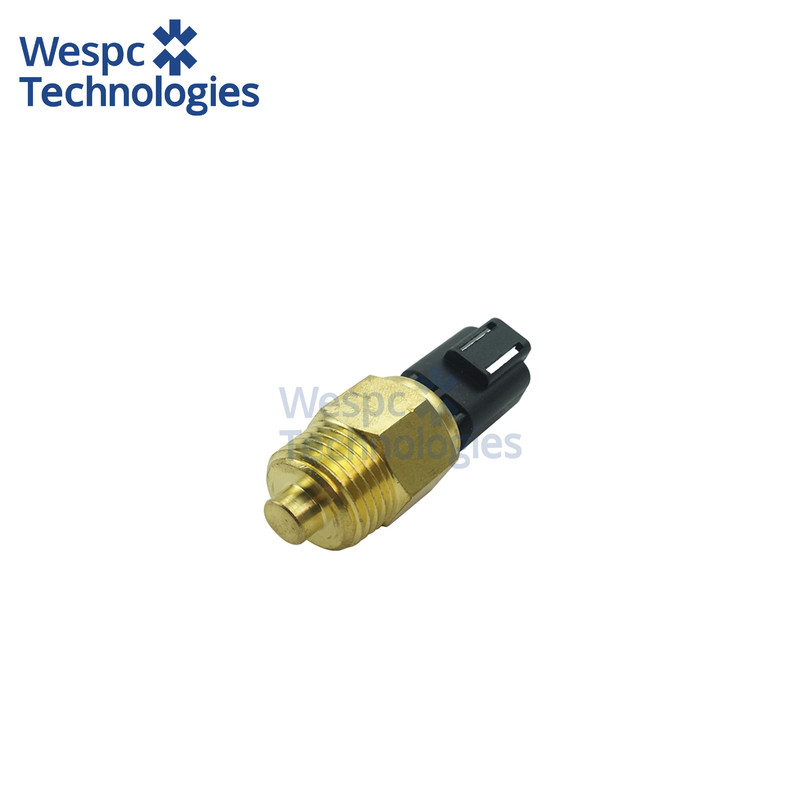

WESPC Water Temperature Sensor 349-2458 For Perkins Engine 1103 1104 1106
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
349-2458 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
Thread interface M14 × 1.5 parallel with 19 mm hex and 18 mm probe reach for direct installation into the cylinder-head coolant gallery. Sensing range –40 °C to +140 °C via a precision NTC thermistor curve 2 500 Ω @ 20 °C, 300 Ω @ 80 °C, 120 Ω @ 110 °C, tolerance ±2 %.
Material & performance features:
Probe body is precision-machined from 1.4571 (AISI 316Ti) stainless steel for complete immunity to glycol, long-life organic-acid coolants and stray galvanic currents; a copper crush-washer and fluorosilicone O-ring ensure leak-free sealing up to 3 bar system pressure.
Interchange part numbers:
349-2458, 10000-45277, 3492458, 1000045277, 4224836M1, 4222203M1, 2755A015
