| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | DC52D MK3 |

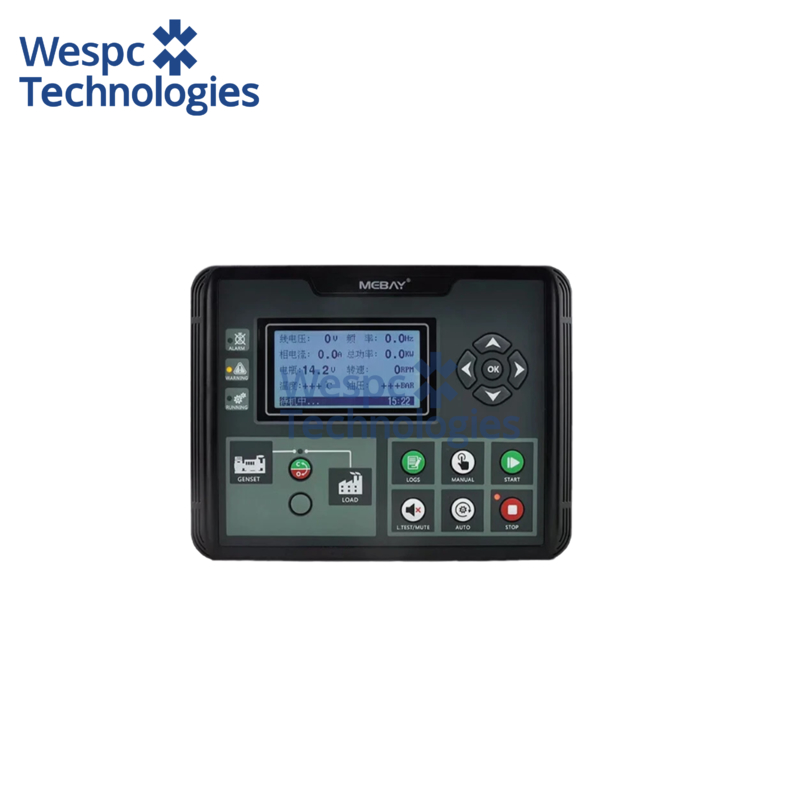

WESPC Orignal DC52D MK3 Original Automatic Remote Start Generator Controller Module
| Working voltage | DC8V----36V Continuous |
| Working condition |
-25-65℃ |
| Storage condition | -40-85℃ |
| Overall dimension | 210mm*160mm*50mm |
| Panel cutout | 186mm*142mm |
| Weight | 0.85Kg |
Summary
This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as well as data setting.
3.5 inch LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can’t work smoothly.
There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 or USB to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.
Main Features
There are four Models under DC5xD MK3 series.
DC50D MK3: used for single machine automation. Start/Stop through remote start signal.
DC52D MK3: Based on DC50D MK3, it adds Mains monitoring and AMF (Mains/Generator automatic switching control), especially suitable for the automation system composed by mains and genset.
DC50DR MK3: Based on DC50D MK3, it adds RS485 port.
DC52DR MK3: Based on DC52D MK3, it adds RS485 port.
Dual core 32bit high performance single chip microcomputer.
3.5 inch 240 * 128 high-resolution LCD screen, Available in 6 languages, user’s language set if necessary.
Indicator and number display through UI surface.
Acrylic material is adapted to protect the screen.
