| Place of Origin: | China |
| Brand Name: | SMARTGEN |
| Certification: | CE,RoHS,ISO9001 |
| Model Number: | BAC1210 |

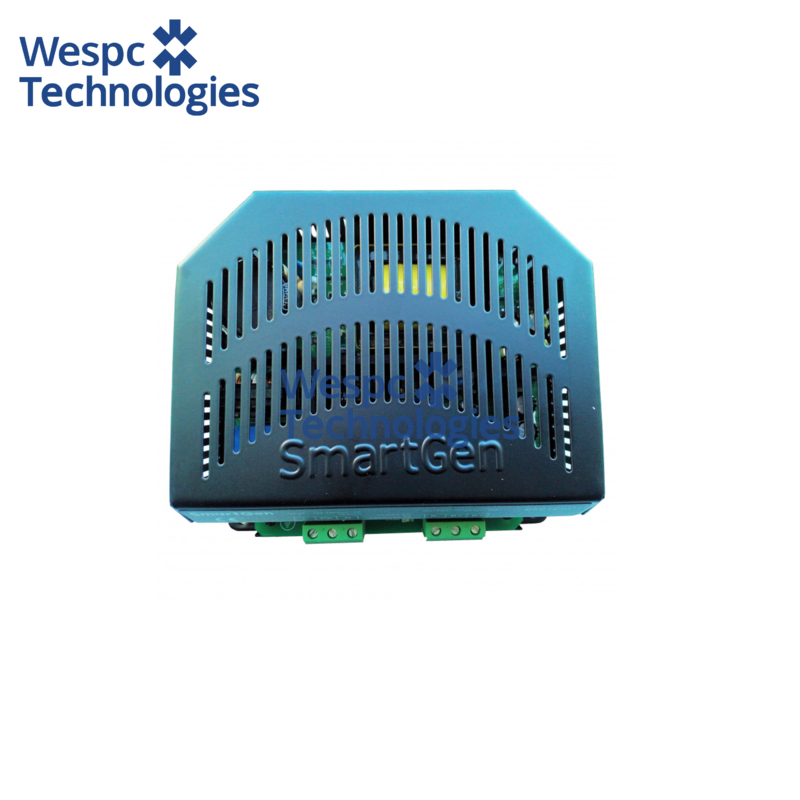

WESPC Original SmartGen BAC1210 Generator Battery Charge Smart Float Unit
| Size | 145.5*131*55mm |
| Weight | 0.8kg |
| Model Number | BAC1210 |
| Brand Name | Smartgen |
| After-sales Service Provided | Video Technical Support,Online Support |
| Markrting Type | Ordinary Product |
| Warranty | 1 year |
| Stock | Yes |
Technical Parameters:
Battery Voltage 12V
Max. Charging Current 10A
Rated Input Voltage (100~240)V
Max. Input Voltage Range (90~280)V
AC Input Frequency (50/60)Hz
Max. Input Current 2.5A
No-Load Power Consumption <3W
Operating Mode Two segments
Maximum Efficiency 83%
Operating Temp. (-30~+55)℃
Storage Temp. (-40~+85)℃
Net Weight(kg) 0.8
Case Dimensions(mm) 145.5*131*55
Product Overview:
Fit with up-to-date power supply device, float charger BAC1210 is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 12V lead-acid batteries.
PERFORMANCE AND CHARACTERISTICS:
Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;
Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
Built-in current protective circuit, which can give effective protection when output over current, short-circuit or reverse connection occurs. Regard power lamp or charge lamp fast blinking as alarm.
Suitable for 12V storage battery and the rated current is 10A;
LED display: Power indication (Green light) and charging indication (Red light).
