| Place of Origin: | China |
| Brand Name: | SMARTGEN |
| Certification: | CE,RoHS,ISO9001 |
| Model Number: | BAC2408 |

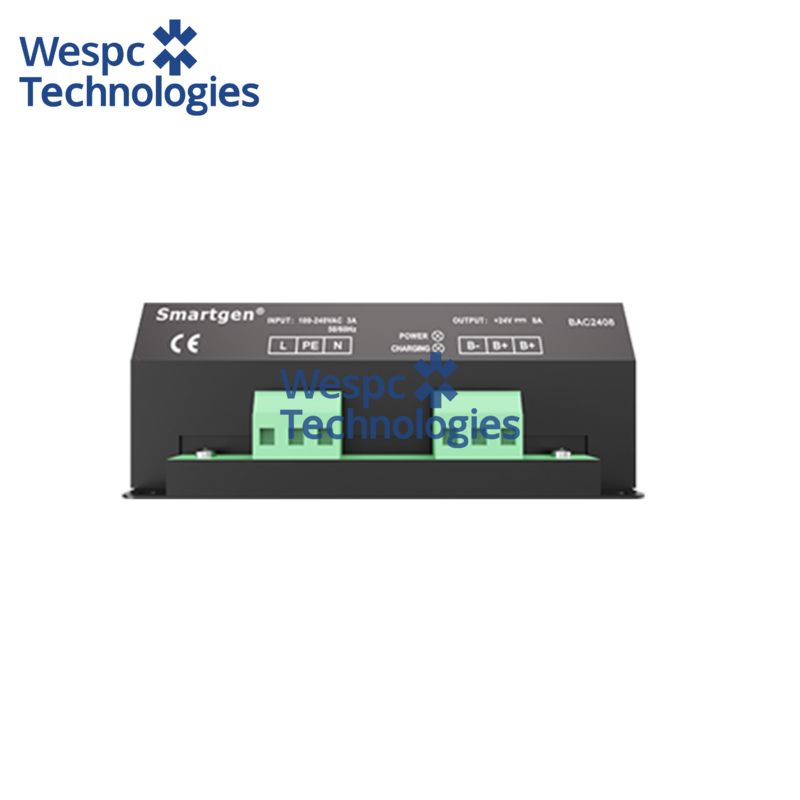

WESPC Original BAC2408 Battery Charger 12V 24V Floating Charge System
| Size | 145.5*131*55mm |
| Weight | 0.9kg |
| Model Number | BAC2408 |
| Brand Name | Smartgen |
| After-sales Service Provided | Video Technical Support,Online Support |
| Markrting Type | Ordinary Product |
| Warranty | 1 year |
| Stock | Yes |
Technical Parameters:
Battery Voltage 24V
Max. Charging Current 8A
Rated Input Voltage (100~240)V
Max. Input Voltage Range (90~280)V
AC Input Frequency (50/60)Hz
Max. Input Current 3A
No-Load Power Consumption <3W
Power Factor Compensation ●
Operating Mode Two segments
Maximum Efficiency 90%
Net Weight(kg) 0.9
Case Dimensions(mm) 145.5*131*55
Product Overview:
Fit with up-to-date power supply device, float charger BAC2408 is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 24V lead-acid batteries.
PERFORMANCE AND CHARACTERISTICS:
1. Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;
2. Automatic two-stage charging process (first constant current, then constant voltage) carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
3. Built-in PFC circuit can calibrate the power factor above 0.99;
4. Built-in current protective circuit for short-circuit protection and reverse connection protection. If failure occurs, power indicator and charging indicator will flash rapidly;
5. Suitable for 24V storage battery and the rated current is 8A;
6. LED display: Power indication (Green light) and charging indication (Red light)
