| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 2755882 |
WESPC Water Temperature Sensor 2755882 For Perkins Engine 1004-40 1004-42 1004-4T 1006-6
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
2755882 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:

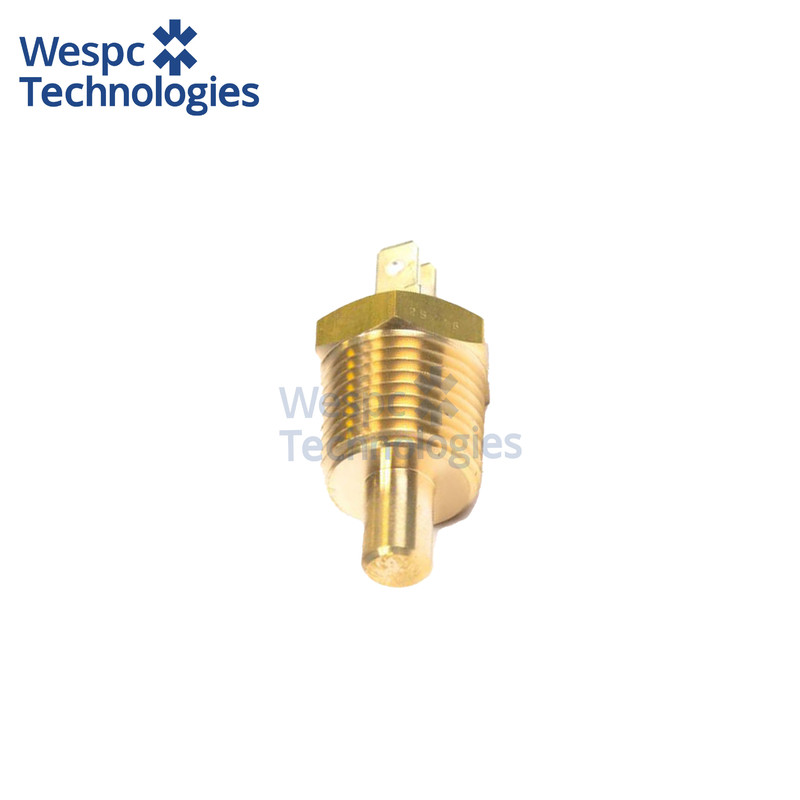

The sensor carries a 3/8-18 NPTF tapered thread and a 19 mm hex, overall probe length 46 mm. It employs a negative-temperature-coefficient (NTC) thermistor element calibrated 2.5 kΩ ±5 % @ 20 °C falling to 180 Ω ±5 % @ 100 °C, giving a steep yet linear 0–5 V output to the engine ECU.
Material & performance features:
The probe shell is forged from lead-free brass and nickel-plated to resist cavitation and glycol-based coolants. The sensing tip is over-moulded in high-temperature PPS, then potted in epoxy for complete vibration and moisture immunity.
Interchange part numbers:
2755882, 622066, 622-066, 2871A018, 2871A019, 2871A020.
