| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | KRP1688 256-6453 224-5013 |

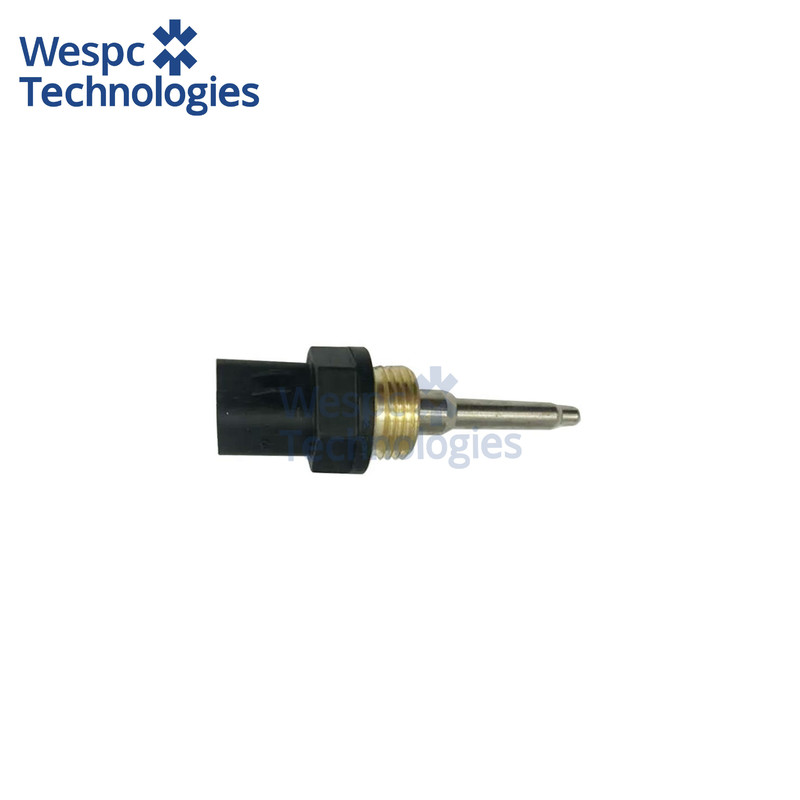

WESPC Temperature Sensor KRP1688 256-6453 224-5013 For Perkins 1100 Diesel Engine
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
KRP1688 256-6453 224-5013 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
Thread 3/8-18 NPTF, hex 22 mm, overall probe length 55 mm. The sensing element is a negative-temperature-coefficient (NTC) thermistor calibrated 2.2 kΩ ±3 % at 25 °C, falling to 180 Ω ±5 % at 100 °C, delivering a seamless 0–5 V ratiometric signal to the engine control module. Operating media temperature range is –40 °C to 140 °C, accuracy ±2 °C, response time <1.5 s in flowing coolant.
Material & performance features:
The probe shell is forged from corrosion-resistant brass and nickel-plated to withstand long-term exposure to glycol-based coolants. The sensing tip is over-moulded in glass-filled PPS, then potted in high-temperature epoxy for complete immunity to shock, moisture and electromagnetic interference.
Interchange part numbers:
KRP1688, 256-6453, 224-5013, T407354, 7W9569, 5I7938, 4W5736
