| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | ATS220 |
WESPC Original ATS220 Generator Controller With LED Display
| Operation Voltage | DC8-36V Continuous |
| Mains AC Voltage Input | 30VAC-300VAC(ph-N) |
| Gens AC Voltage Input | 30VAC-300VAC(ph-N) |
| Gens Close Output | 5Amp(AC250V) free output |
| Mains Close Output | 5Amp(AC250V) free output |
| Switch Value Input | Available if connecting with Battery - |
| Panel Cutout | 67mm*67mm |
| Weight | 0.3Kg |
Summary
ATS220 is one controller with ATS system of Mains and genset power,which can control the ATS switch by auto or manual mode to apply for mains and gens power.It is with 4 digits LED tube which can display the single-phase gens voltage, gens frequency, mains voltage, mains frequency. ATS switch working status can be also shown by LED.
All the parameters can be set through the front face buttons or PC port.
Main Features
32 units Micro-procession technology is used.
Wide voltage range: 8-36V.
4 digits LED tube which can display mains, voltage, frequency.
Totally 7 relay’s output, max current is 5A(250VAC).
1 group programmable switch input.
Parameters can be set by front face buttons.
Standard water-proof rubber, the protection level can reach at IP65;

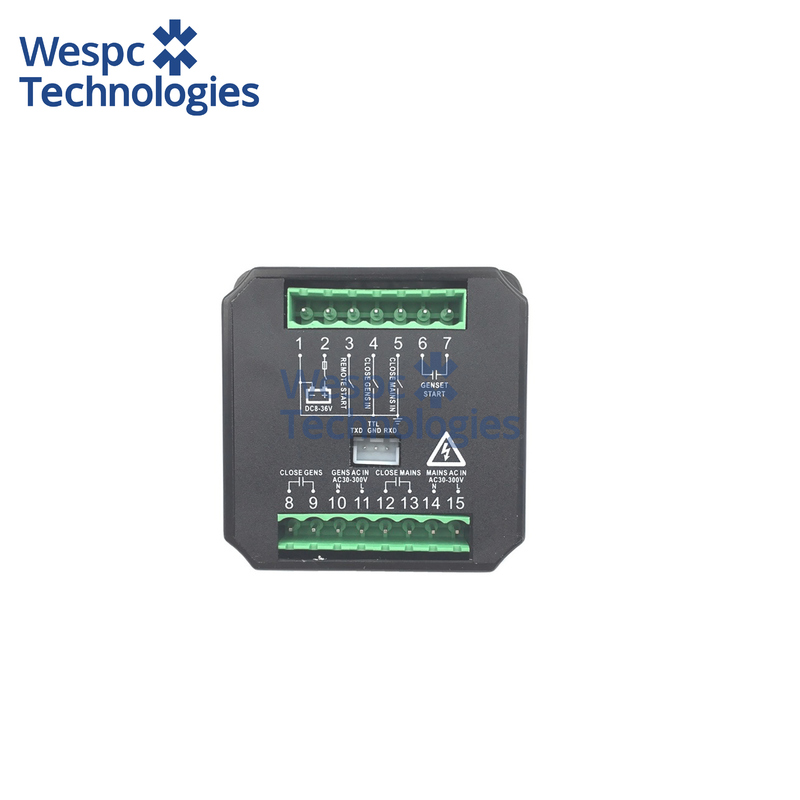

All the connection are installed by European style terminals.
Simulated mains function, crank conditions can be chosen.
