WESPC Original ATS520 Control Genuine Diesel Generator Controller Module

Brand Name:	Mebay
Model Number:	ATS520
MOQ:	5 pcs
Price:	US $ 139-149(1pcs)
Packaging Details:	Carton
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Application:

Diesel Generator

Type:

Control Panel

Usage:

Generator Parts

Material:

Plastic

Packing:

Carton

5 Pcs

Supply Ability:

In stock

Highlight:

car engine control module

diesel generator controller

Electronic Digital Meter

Product Description

WESPC Original ATS520 Control Genuine Diesel Generator Controller Module

S1 Close Output	16Amp(AC250V) free output
S2 Close Output	16Amp(AC250V) free output
Switch Value Input	Available if connecting with Battery -
Working Condition	-25-65℃
Storage Condition	-40-85℃
Panel Cutout	186mm*142mm
Weight	0.85Kg
Overall Dimension	210mm160mm50mm

Summary

This series of controllers is a dual power switching controller, which has programmable function, automatic measurement and control, LCD display of dual power intelligent switching module.

This controller uses 3.5 inch 240*128 large screen high resolution LCD display, a completely new and original UI design.Controller built-in Simplified Chinese, English and other display interfaces can be selected, and language interface can be customized according to customer requirements. All parameters of the controller can be adjusted by keys on the controller panel, or adjusted and monitored by PC through USB port or RS485 interface. It can be widely used in various types of power systems.

Main Features

32 units Micro-procession technology is used.

3.5-inch 240*128 large screen high resolution liquid crystal display, with Chinese and English switchable, customized language according to customer needs;

Acrylic material is adapted to protect the screen.

With USB interface, the parameters can be set through USB interface to monitor real-time, and the parameters can be set when the controller does not turn on the power supply.

With RS485 communication port, can achieve “Three Remote” functions via MODBUS protocol.

S1/S2 has independent over-current warning function and trip warning function.

Detect and display power generation, municipal power, phase and other parameters;

S1/S2 accumulative active power, accumulative reactive power and accumulative closing times are displayed.

Automatic/manual state switching. In manual mode, the switch can be forced to close/open.

Two generators can be controlled to realize cycle operation, main operation and balanced time operation.

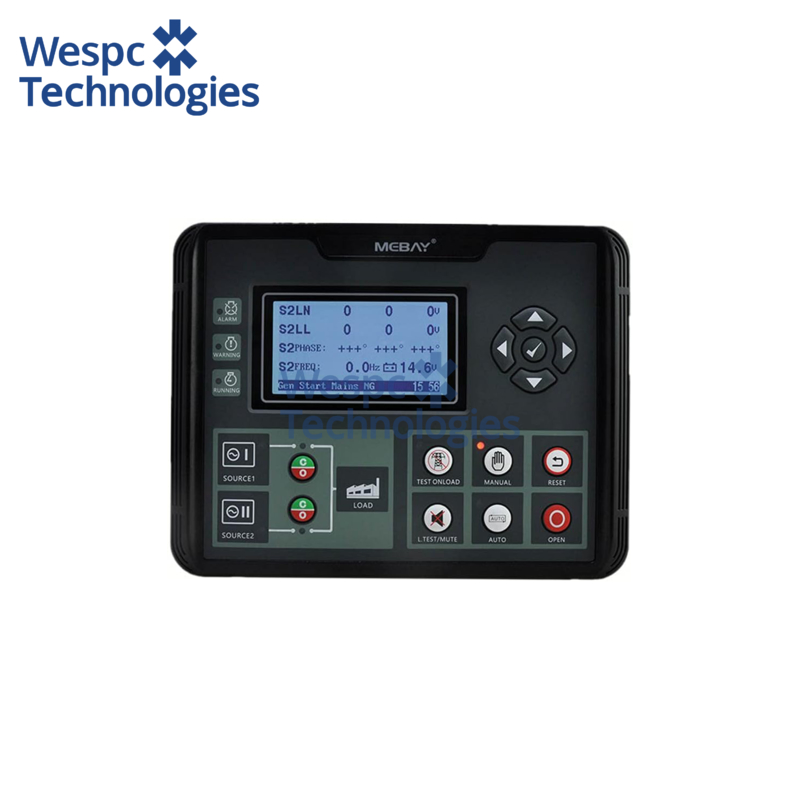

WESPC Original ATS520 Control Genuine Diesel Generator Controller Module 0
