| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | BCC240 |

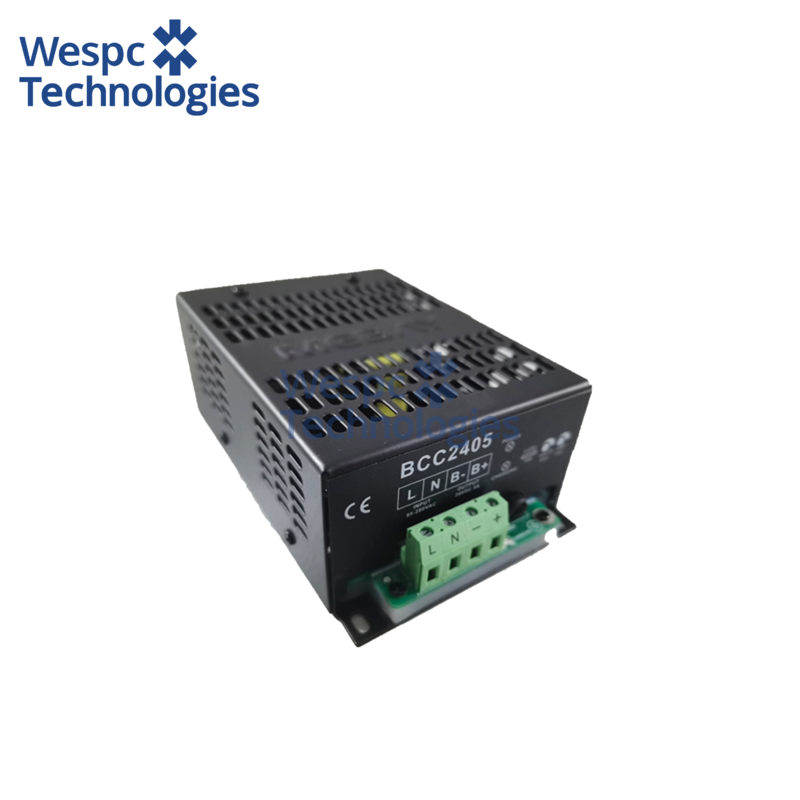

WESPC Original BCC2405 Diesel Generator Battery Charger Control Module
| Nominal AC Voltage | AC 95~280V |
| AC Frequency | 50Hz/60Hz |
| Max. Input Power | 165W |
| Max. Input Current | 2A |
| Max. Power | 135W |
| Working Humidity | 20%RH-93% RH (No condensation) |
| Weight | 0.7kg |
| Dimension | 143mmx96mmx55mm (Length*Width*Height) |
Summary
The charger is specially designed for the lead-acid battery used in the engine. It adopts the three-stage intelligent control mode of constant current fast charging, current limiting and trickle floating charging. It can be charged for a long time without damage to the battery. It can maintain the full state of the battery and ensure the service life of the battery. The charger can be used in parallel with the engine charging generator without disconnecting the charger during the operation of the engine.
Main Features
The metal shell has good heat dissipation effect and strong anti-interference ability.
Using advanced switching power supply mode, wide AC input voltage range.
Three stage intelligent charging to maintain battery power automatically.
With short circuit and reverse connection protection.
It has charging voltage and charging current fine tune function.
It has LED which can indicate the working state of the charger.
