4115P013
|
| Place of Origin: | China |
| Brand Name: | Wespc |
| Certification: | ISO9001 |
| Model Number: | 4115P013 |

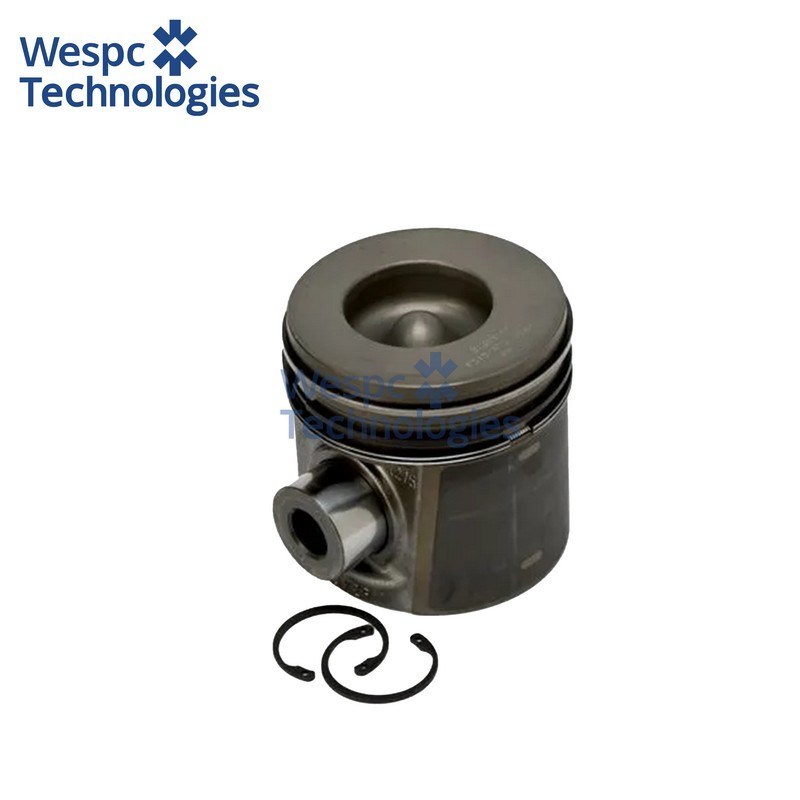

WESPC 4115P013 Piston Kit for Perkins 1103 1104 Diesel Engines
|
Brand Name |
WESPC |
|
Place of Origin |
China |
|
Part Number |
4115P013
|
|
After-sales Service Provided |
Video Technical Support, Online Support |
|
Marketing Type |
Ordinary Product |
|
Certificate |
ISO9001 |
|
Warranty |
1 Year |
|
Stock |
Yes |
Application
WESPC 4115P013 piston kit is designed for Perkins 1103 and 1104 series diesel engines, including 1103C-33, 1103D-33, 1104C-44, and 1104D-44 builds. This oversize 0.040" (1.00 mm) bore kit is used in agricultural tractors, construction machinery, and generator sets requiring in-frame overhaul or cylinder reconditioning. The eutectic aluminum piston with treated ring grooves ensures high wear resistance, stable compression, and extended service life under heavy-duty operation.
Generator sets
Applied in Perkins-powered gensets from 30–100 kVA, especially those using 1103/1104 series engines in prime or standby duty. The 4115P013 kit restores combustion sealing and oil control in overhauled engines, improving fuel efficiency and maintaining rated output after cylinder re-boring.
Industrial systems
Used in Massey Ferguson tractors, telehandlers, and industrial loaders operating under high torque and variable load conditions. The piston’s anodized crown and graphite-coated skirt reduce scuffing during break-in, while nitrided/chrome-faced rings maintain sealing in dusty or high-temperature environments.
Technical specifications
Part number: 4115P013
Function: piston kit (includes oversize piston, rings, pin, retainers)
Material: eutectic aluminum alloy piston with anodized crown; steel rings with nitrided top and chrome oil control
Compatible engines: Perkins 1103C-33, 1103D-33, 1104C-44, 1104D-44
Bore size: oversize +1.00 mm (0.040")
Warranty: 12 months
Interchange part number
4115P013; replaces Perkins OEM piston kits for 1103/1104 series engines after cylinder re-bore
