| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | T407269 |

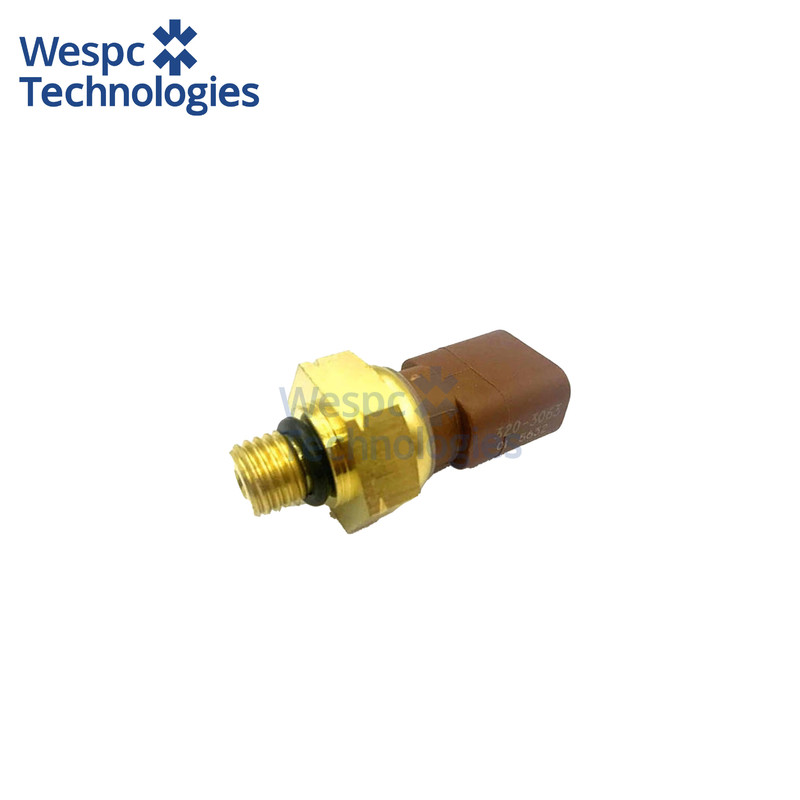

WESPC Air Pressure Sensor T407269 For Perkins 1506D-E88TAG 2206D-E13TA 1506A-E88TAG5
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
T407269 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
Thread 7/16-20 UNF, hex 19 mm, overall body length 54 mm. The sensor employs a piezo-resistive silicon MEMS element measuring absolute pressure from 0 kPa to 400 kPa (0–58 psi), delivering a linear 0.5–4.5 V analogue signal referenced to a 5 V supply.
Material & performance features:
The housing is precision-machined from corrosion-resistant aluminium alloy 6061-T6, hard-anodised for additional protection against road salt and chemical contaminants. The sensing element is isolated from the media by a fluorosilicone diaphragm bonded with high-temperature epoxy, ensuring compatibility with turbocharged intake air, exhaust-gas recirculation and crankcase ventilation gases.
Interchange part numbers:
T407269, 320-3063, 185-5370, 5I7574, 5I-7574, 6I7930, 6I-7930
