| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | T410501 |

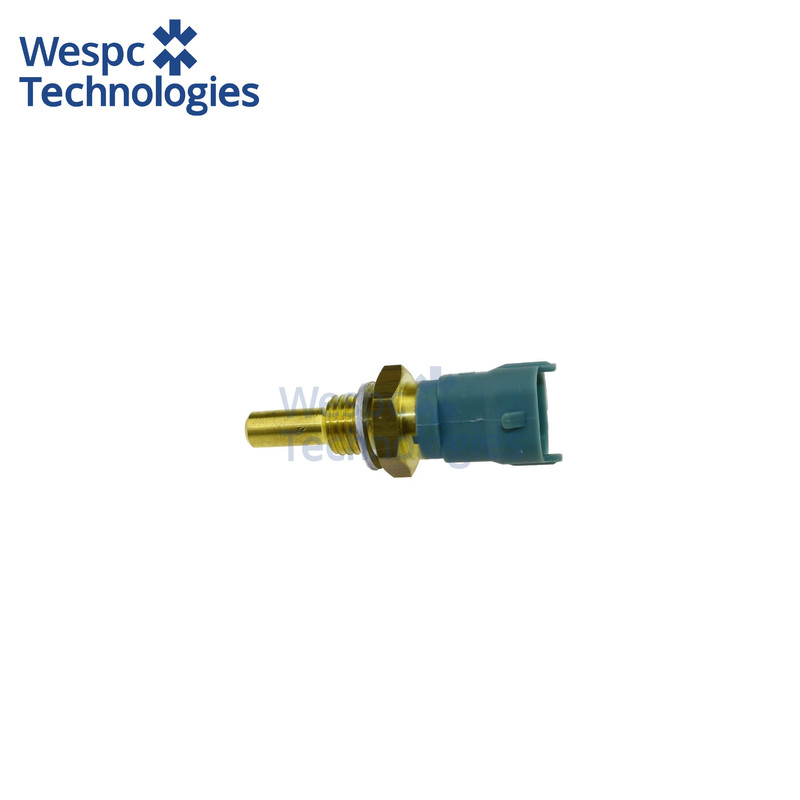

WESPC Water Temperature Sensor T410501 For Perkins 1104D 1106D Engine
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
T410501 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
Thread 3/8-18 NPTF, hex 19 mm, probe length 43 mm. The sensing element is a negative-temperature-coefficient (NTC) thermistor calibrated 2.2 kΩ ±3 % at 25 °C, falling to 180 Ω ±5 % at 100 °C, producing a seamless 0–5 V ratiometric signal to the engine control module.
Material & performance features:
The probe shell is forged from lead-free brass and nickel-plated to resist cavitation and glycol-based coolants. The sensing tip is over-moulded in high-temperature PPS, then potted in epoxy for complete vibration and moisture immunity.
Interchange part numbers:
T410501, 2871A018, 2871A019, 2871A020, 622066, 622-066.
