| Place of Origin: | China |
| Brand Name: | Mebay |
| Certification: | ISO9001 |
| Model Number: | BX50C |

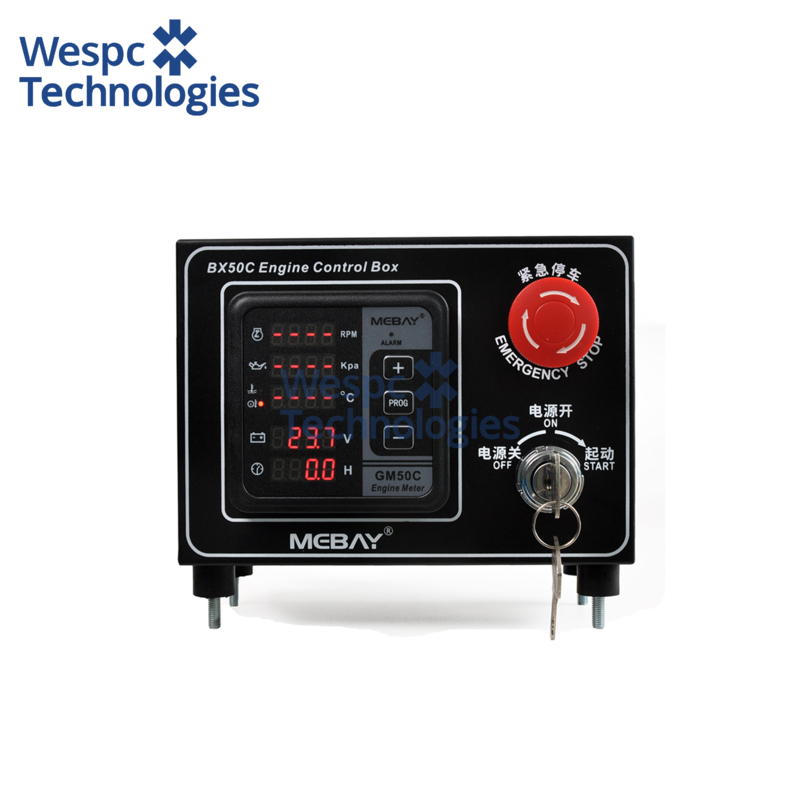

WESPC Original BX50C Diesel Engine Controller Control Box With Protection
|
Power: |
DC 8～36 V |
| Consumption power: | MAX:1.5 W |
| Alarm output: | Neg- output, Max DC1A |
| Operation Temperature: | -25～65℃ |
| Storage Temperature: | -40～85℃ |
| Ingress protection: | IP54(the front face after installation) |
| Size (W * H * D): | 210mm * 180mm * 90mm |
| Weight: | 1.6kg |
Summary
BX50C is a complete set of control box using GM50C diesel engine multifunctional instrument independently developed by our company. For EFI engine, read engine related parameters through ECU and display alarm fault code. The control box adopts national standard flame retardant cable and CHINT brand switch button, which has the advantages of exquisite workmanship, reliable quality and high price ratio.
Features
5 large LED displays
Read engine parameters through can interface
All parameters can be set through the panel keys
The engine speed can be controlled through the panel keys
Multiple alarm protection functions
Waterproof plug output
Parameters Display
Engine RPM
Engine Oil Pressure
Engine Oil Temperature
Engine Cooling Water Temperature
Battery Voltage
Protections
Over speed
Low Oil Pressure
High Oil Temperature
High Water Temperature
Low Battery Voltage
Emergency stop
