| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | U5MK1236 |

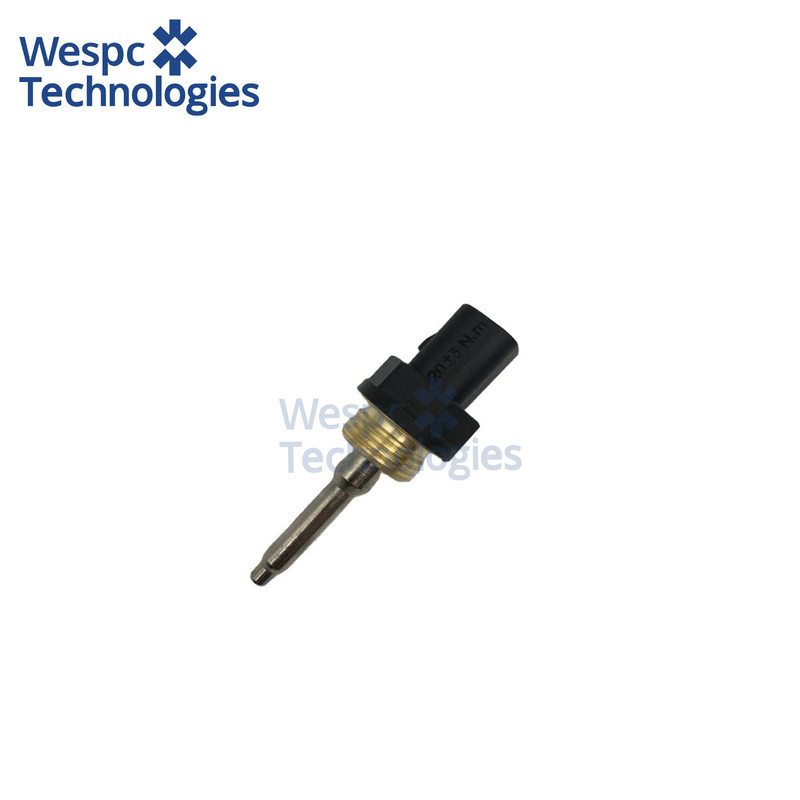

WESPC Fuel Pressure Sensor U5MK1236 For Perkins 1104D-E44T 1104D-E44TA 1106D-E66TA
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
U5MK1236 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
Thread M12 × 1.5, hex 19 mm, overall body length 55 mm. The sensor employs a thin-film piezo-resistive element measuring absolute pressure from 0 kPa to 1800 kPa (0–261 psi), delivering a linear 0.5–4.5 V analogue output referenced to a 5 V supply.
Material & performance features:
The housing is precision-machined from corrosion-resistant brass and nickel-plated to withstand continuous exposure to ultra-low-sulphur diesel and biodiesel blends. The sensing diaphragm is laser-welded 316L stainless steel, delivering burst pressure >35 bar and eliminating potential leak paths. Electronics are fully encapsulated in high-temperature PPS over-mould, providing immunity to 30 g continuous vibration and 100 g mechanical shock.
Interchange part numbers:
U5MK1236, 238-0118, 10000-06207, 4226583M1.
