| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | W85720580 |

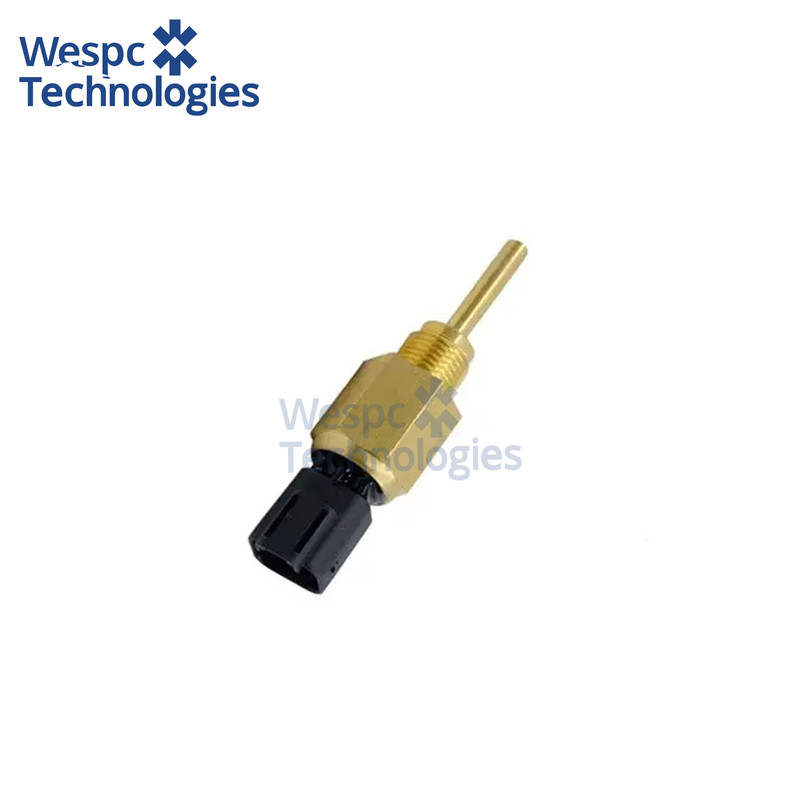

WESPC Water Temperature Sensor W85720580 For Perkins 403A-11 403A-15 403D-11 Engine
| Brand Name | WESPC |
| Place of Origin | China |
|
Part Number |
W85720580 |
| After-sales Service Provided | Video Technical Support, Online Support |
| Marketing Type | Ordinary Product |
| Certificate | ISO9001 |
| Warranty | 1 Year |
| Stock | Yes |
Application:
Technical specifications:
Thread M14 × 1.5, hex 19 mm, probe length 42 mm. The sensing element is a negative-temperature-coefficient (NTC) thermistor calibrated 2.5 kΩ ±2 % at 25 °C, falling to 120 Ω ±3 % at 100 °C, delivering a seamless 0–5 V ratiometric signal to the engine control module.
Material & performance features:
The probe shell is precision-machined from lead-free brass and nickel-plated to resist corrosion from glycol-based coolants. The sensing tip is over-moulded in glass-filled PPS, then potted in high-temperature epoxy for complete immunity to vibration, moisture and electromagnetic interference.
Interchange part numbers:
W85720580, 341-3600, 3413600, 2848A129, 2848A127.
