| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 10000-59645 |

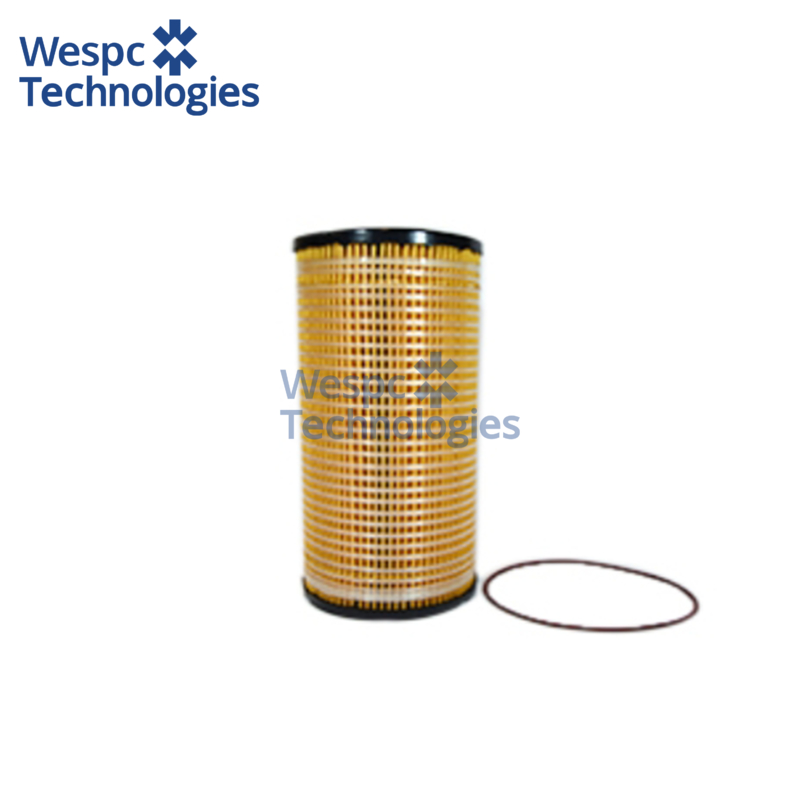

WESPC Oil Filter 10000-59645 For Perkins 2306C-E14TAG2 Engines
| Quality Class: | High-Quality |
|
After-sales Service Provided |
Video Technical Support, Online Support |
| Packaging | Carton |
| Place of Origin | China |
| Warranty | 1 Year |
| Stock | Yes |
Application
Oil Filter 10000-59645 is designed for Perkins 2306C-E14TAG2 diesel engines. Commonly used in generator sets and industrial platforms. It provides full-flow filtration to remove contaminants from engine oil, ensuring lubrication system integrity and protecting internal components during extended operation.
Technical specifications
Part number: 10000-59645 Function: engine oil filtration Material: cellulose/glass fiber media with metal housing Compatible engines: Perkins 2306C-E14TAG2 Height: 270.5 mm Outer diameter: 124.5 mm Inner diameter: 43.7 mm Temperature range: -30°C to +120°C Filtration efficiency: ≥99% Warranty: 12 months
Material & performance features
The filter uses acrylic beads to maintain pleat spacing and maximize surface area. Spiral roving prevents pleat movement under pressure. Molded end caps ensure leak-free sealing. A bypass valve supports oil flow during cold starts and pressure surges.
Interchange part numbers
10000-59645, CH10929, 996-452, EO-5101; verified fitment for Perkins 2300 series engines in generator and industrial applications
