| Place of Origin: | China |
| Brand Name: | WESPC |
| Certification: | ISO9001 |
| Model Number: | 10000-59652 |

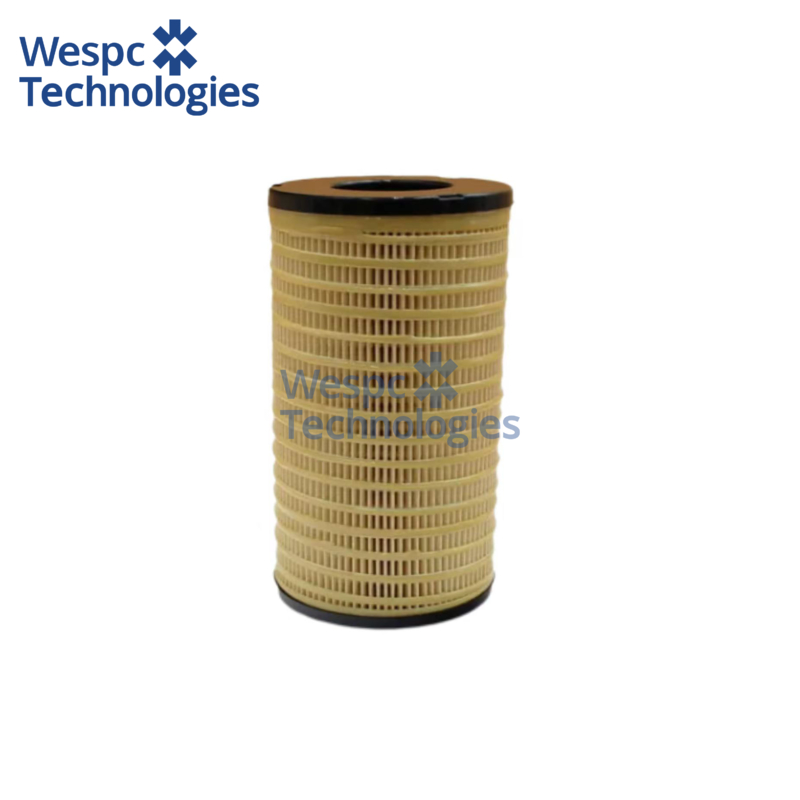

WESPC Fuel Filter 10000-59652 For Perkins 2306C-E14TAG2 Engines
| Quality Class: | High-Quality |
|
After-sales Service Provided |
Video Technical Support, Online Support |
| Packaging | Carton |
| Place of Origin | China |
| Warranty | 1 Year |
| Stock | Yes |
Application
Fuel Filter 10000-59652 is designed for Perkins 2306C-E14TAG2, 2206C-E13TAG2, 2506C-E18TAG2, and 2806C-E18TAG2 diesel engines. Commonly used in generator sets rated 300–650 kVA. It functions as a primary fuel filtration element, removing particulates and water from diesel fuel before it reaches the injection system, ensuring clean combustion and protecting fuel components under high-load operation.
Technical specifications
Part number: 10000-59652 Function: primary fuel filtration Material: multi-layer filtration media with metal housing Compatible engines: Perkins 2306C-E14TAG2, 2206C-E13TAG2, 2506C-E18TAG2, 2806C-E18TAG2 Height: 236 mm Outer diameter: 117 mm Inner diameter: 55 mm Temperature range: -30°C to +100°C Warranty: 12 months
Material & performance features
The filter uses pleated media for high dirt-holding capacity and low flow restriction. End caps are molded for leak-free sealing. A Viton O-ring ensures chemical resistance and long-term durability. Designed for consistent performance in demanding generator and industrial environments.
Interchange part numbers 10000-59652, CH10930, 996-453, P502478, FF5714; verified fitment for Perkins 2200–2800 series engines in generator and industrial platforms
